Name: Foil Drive Max+ & Sunova Trench Foil Complete Assist System
Brand: Foil Drive
SKU: 2121595304
Availability: OutOfStock

Foil Drive Max+ & Sunova Trench Foil Complete Assist System

Roll over image to zoom in Click on image to zoom

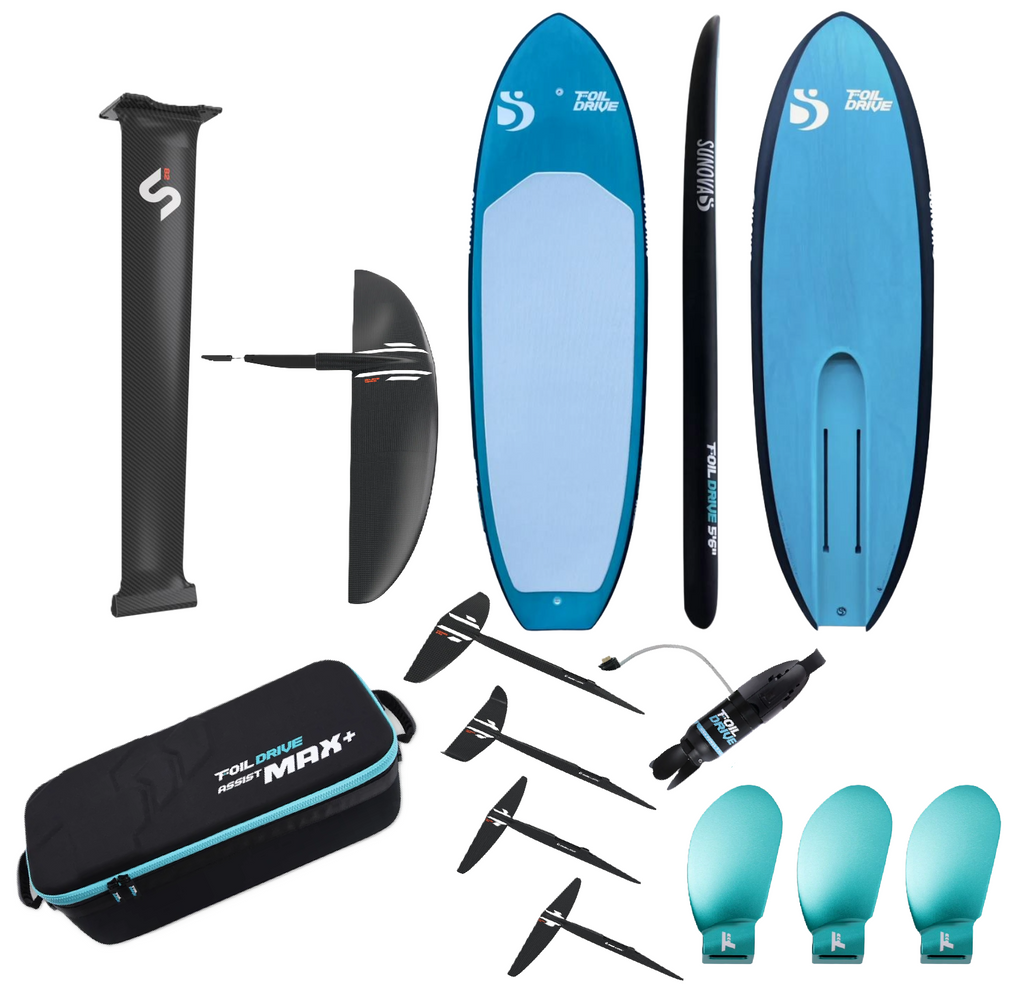

Complete Slingshot One-Lock eFoil Assist Package

Comes with:

Max+ paired with RetroFit HP Motor & 20cm Cable

3-Blade Blue Propeller

Sunova Trench Board

Slingshot One-Lock 82cm Carbon Mast w/ wing Choice Options

Call or Text 281-508-6485 for more info!

The Foil Drive Assist MAX+ takes everything that the world loved about our most popular foil assist and evolves it into the latest Gen 2.5 class, turning up thrust, runtime, and safety features to unlock autonomy across all foiling disciplines.

Built around the same proven 43V power, tech, and charging architecture of the Fusion, the MAX+ offers our most durable one piece battery design, all while retaining the compact, lightweight and balanced package that made the original MAX so versatile.

Unlock smaller foils, boards, performance, faster take-off, and more time on the water with tilt-safety cut off features that makes this same retrofit kit so family friendly.

The lightweight balance that made MAX the all rounder remains, while everything around it has evolved.

Riders can enjoy a sportier feel without compromising on thrust and boost thanks to the NEW FM+650 Battery (650Wh) and early in 2027 the even smaller, FM+430 Battery.

Simply choose your desired motor option and AC lead below.

Details:

The Assist MAX+ is built for riders who want the best all-around system that can open up every side of foiling

Spend over an hour flying through surf and riding waves.
Motor upwind to unlock downwind runs without a shuttle
Practice pumping without wasting energy on repeated tow or surf starts
Chase wakes from passing boats
Extra thrust to get onto smaller foils and boards with more confidence and runtime.

From tiny bumps to the biggest waves of your life, MAX+ gives you the freedom to keep flying regardless of the conditions. Surf, lightwind wing, downwind, wake, flatwater or eFoiling, it adds more power, runtime and range to practically any existing foil setup you have already or want to ride, making every session easier to access, more productive and more fun.

Tech Specs:

System Voltage: 43.2V
Battery Capacity Range: 648Wh
Max Thrust: 35.5kg
Minimum Install Weight*: 6.71 kg
Dimensions with Battery: 540x125x55mm
Peak Power (Boost): 2150W
Sustained Power: 1750W
Peak Horsepower: 2.88hp
Sustained Horsepower: 2.35hp
App Compatibility: Foil Drive App, Android and IOS
Water Rating: IP68 Water and Dust Resistance
Certified:UN38.3, CE, FCC, WEEE, RoHS, PSE, ICES, IP68

*Install weight includes Unit, Battery, Integrated HP Motor, Three Blade Hub and Props, Nosecone (If Applicable) - Retrofit install with mini pod mounted at 20cm increases install weight by 0360g

What's included :

Chosen Battery Option
Chosen Motor Option
___

Foil Drive MAX+ (In Case)
V3 Controller with Bump Guard Installed
43V Standard Charger 12amp
4x Titanium T40 M7 Split Bolts Silver

Controller Accessories Case
- USB-C Charge Pad and Cable
- Bump Guard Variation
- Wrist Leash
- 1.5mm Allen Key for Bump Guard Removal

Tools and Hardware
1x T40 Driver
1x T30 Driver
1x 2.5mm Black Titanium Driver
1x Pick Tool
2x 15g Battery Grease
2x Nose Cone Rocker Pads
3x M4 10mm Titanium Motor Plug Bolts
1x Anode Replacement Kit
1x Replacement Electronics Box O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Blue)
1x Replacement Motor Cable O-Ring (Red)
1x Microfibre Towel

Other
2x Mast Foam Tracks Guides
1x Tool Caddy (Inside MAX+)
1x Sticker Pack

User Manuals

Motor System Options:

Retro-fit High Power Motor KitIncludes the Universal Mini Pod, three-blade hub, standard propellers, 20cm cable, high-power stator & rotor and hardware, delivering a complete high-performance retro-fit solution.

Sunova x Foil Drive Trench Board!

Designed and tested with the team at Foil Drive, this board was specially created to function with the Gen 2 and Fusion (Gen 2.5) systems. With a larger surface area on the bottom, rolled hard edges, and minimal rocker, this board begins to plane as soon as you press go. But don’t let its friendly appearance fool you, it's an absolute weapon on foil.

Specifically designed with a softer deck pad to ensure you’re comfortable enough to stay on foil for hours.

Picking the Right Foil for those Kool Skilz:

Over the deep end and ready to dive in? This is the best way to help "Ease" you into foiling...Haha.

EASE New to foil assist surfing and foiling in general. Pick the Ease Series foils with the largest board option. If you are a smaller rider, downsize the board and front wing to the smaller Ease option.

GLIDE If you are already foiling and working option jibes, letting go of the rope behind the boat or actively wanting to "skip" that first foil beginner blues. I would consider one of the Glide Series foils. 1525 for heavier riders or endless flat water pumping sessions to the 925 for smaller weight riders & stealing wake boat sized (roughly 3') waves.

FLOW If you want maximum glide potential and chasing the idea of downwinders (smallest rolling wind bumps possible) the Flow 1000 is your ticket to ride.

CUSTOM If you fall in love with another slingshot wing setup I don't have listed, the custom wing option and someone from our store will custom build your dream ride. Call or text: 281-508-6485 or email us at sales@houstonkiteboarding.com

High Power V2 Motor:

Key Benefits of the High Power V2 Motor

Unmatched Low-End Torque: Perfect for heavier riders or smaller boards or foils, the High Power Motor delivers effortless take-offs with power to spare. 
Longer Runtimes: Thanks to its superior torque, you’ll need less throttle input, giving you significantly extended ride times.
Increased Thrust: Feel the extra push when you need it most—more thrust means more versatility across all foiling disciplines. 
Smoother, Quieter Performance: Enjoy a seamless ride with enhanced efficiency and reduced noise.
Just 10mm longer and 160g heavier than the Standard v2 Motor, the performance gains make it a game-changer despite the larger size. It’s like fine-tuning your wing or board for optimal results!
Seamless Compatibility. The High Power Motor is fully compatible with your Gen2 setup, requiring the v2 Removable Cable and v2 Puck. Pair it with a 2 or 3 Blade Propeller, we recommend the 3 blade for maximum performance.
