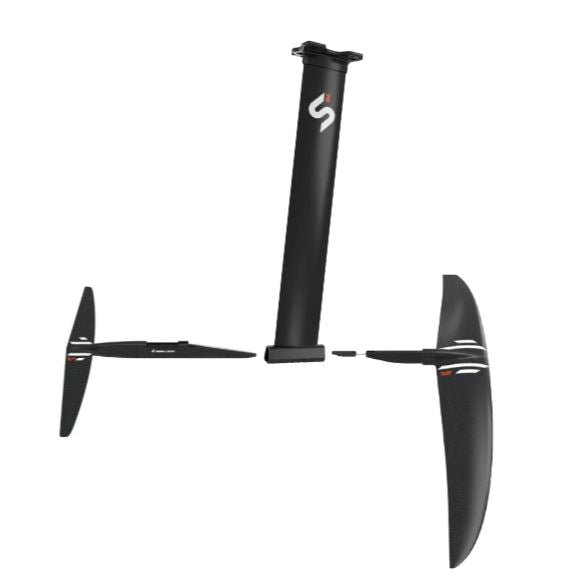

Description
Slingshot One-Lock Foil Package with Glide Front Wing Option and Slingshot new Performance Flare Tail Stabilizer Wings
*Limited stock available on Flow & Flare Wing Options
Package Includes:
One Lock Glide or Flow Front Wing
One Lock Flare Tail Stabilizer Rear Wing
Glide Series Wings:
The Glide line of front wings is designed for riders seeking the best all-around wing for their second foil purchase. With a balance of lift, maneuverability, and consistent foot pressure, this wing allows riders to quickly adapt and gain confidence. The trust built in the foil’s feel accelerates progression, enabling riders to ride faster and with greater control
The One-Lock Glide Front Wing is the most efficient front wing in the One-Lock line. Through utilizing a medium-high aspect ratio, we found the most forgiving and playful front wing shape yet. The medium high camber profile excels in low end lift, allowing smaller wings to get up at slower speeds. When accelerating to faster speeds, the wing tip twist prevents the foil from gaining lift. This means there is no increase in front foot pressure when pushing the foil to the extremes.

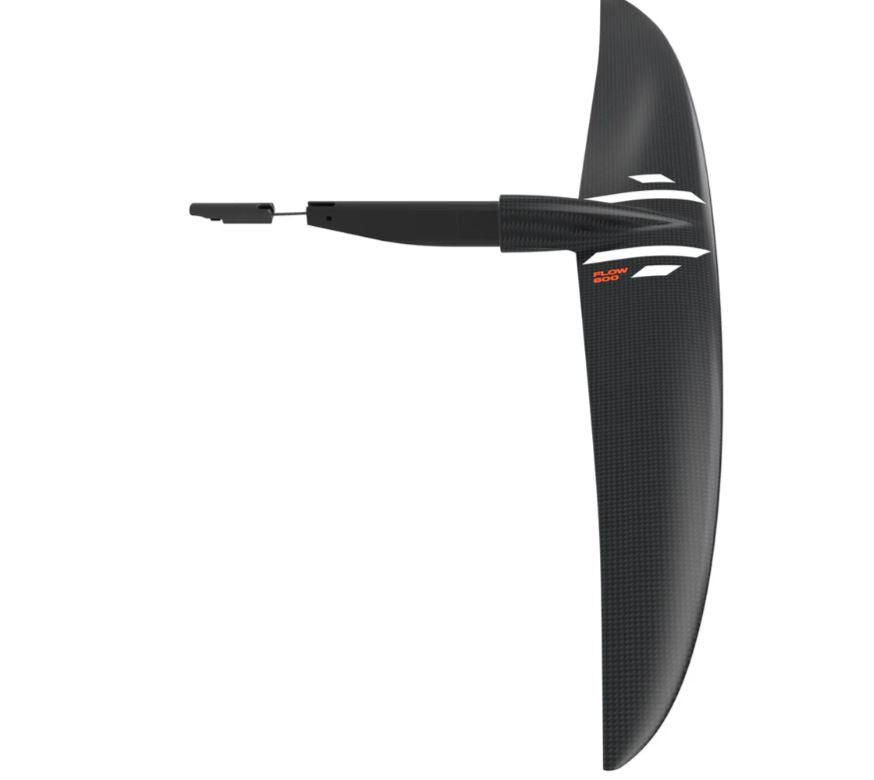

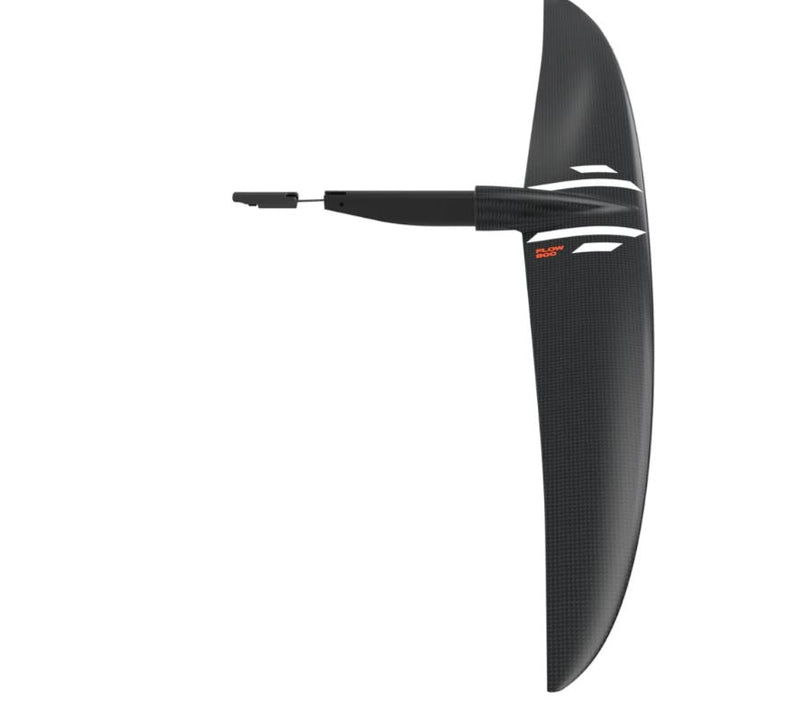

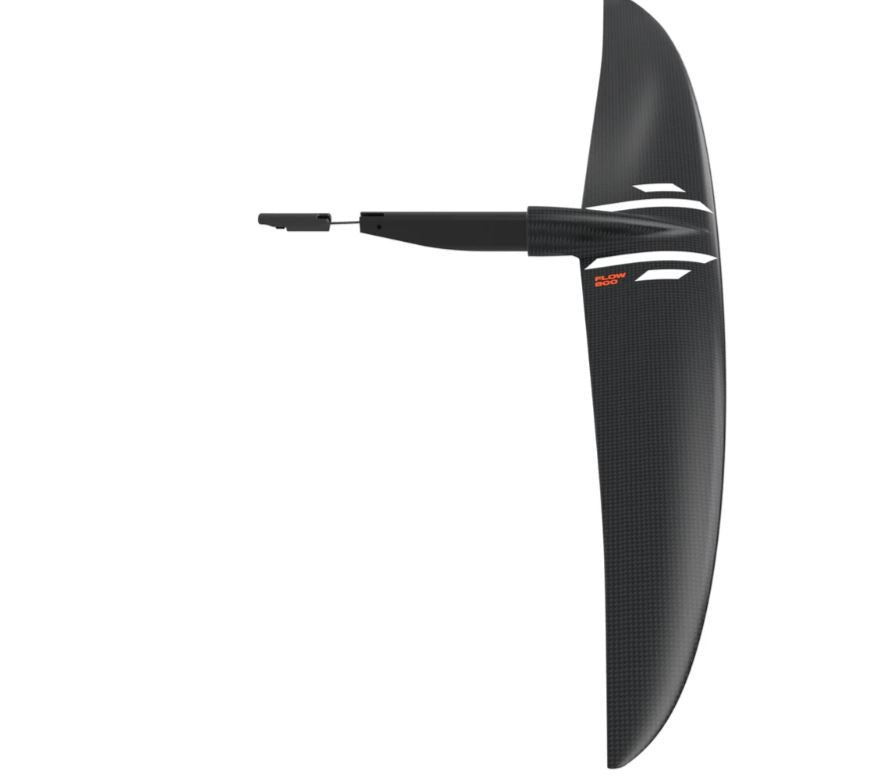

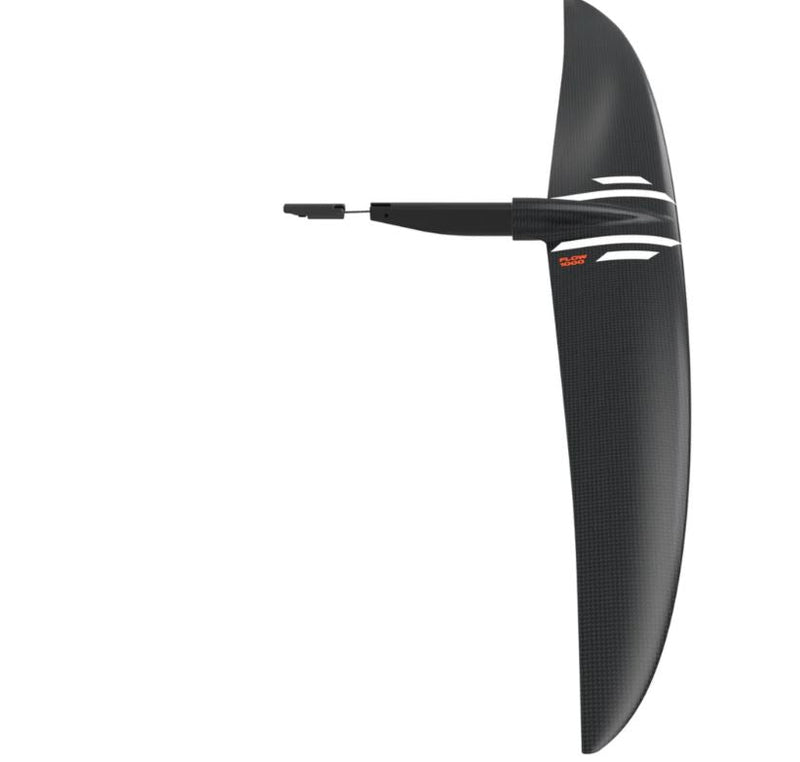

Flow Series Wings:
PUMP / ACCELERATE / CARVE
Sizes: 600, 800,1000
High-aspect, ultra-efficient wings for advanced foiling.
The One-Lock Flow front wing series is the most efficient, high-aspect, and high performance wing in the One-Lock lineup, designed for maximum glide, efficiency, and reactivity. Ideal for prone, downwind, wakefoiling, and wingfoiling, these wings offer a wide speed range with minimal drag, allowing advanced riders to push the limits of carving, pumping, and wave connections.
The Flow front wings are designed to enhance maneuverability and efficiency, pushing
performance to new levels. With a high aspect ratio, these wings are highly efficient, offering a speed range that bridges the Glide 925's low end and the Glide 725's high end, providing optimal performance across various conditions. The tapered, blended profile reduces drag at lower speeds, while the closer mast mounting and tapered wing tips boost reactivity, counteracting the larger span.
-
High Aspect Ratio- Sitting at 11 AR, the Flow series delivers maximum efficiency,
acceleration, and pumping projection. -
Medium-High Camber Profile- Enhances low-speed lift, allowing smaller wings to
perform at slower speeds.
-
Wing Tip Twist- Prevents stall at the wing tips for better low end and a predictable feel while breaching. Wing tip twist also reduces relative lift at the wingtips making the foil more roll reactive.
-
Anhedral Wing Shape- Improves turning performance by maintaining lift throughout maneuvers, increasing overall comfort.
-
Preinstalled One-Lock Latch- Ensures secure connections between the front and rear wings with additional replacement latches included for convenience.
-
Carbon Arc Layup Fuselage Connection- The front section of our fuselage is now molded into the front wing using a Carbon Arc Layup, reducing drag and creating a stronger connection for increased responsiveness.
One-Lock Masts
(Aluminum, Standard Carbon, and High Modulus Carbon Construction)

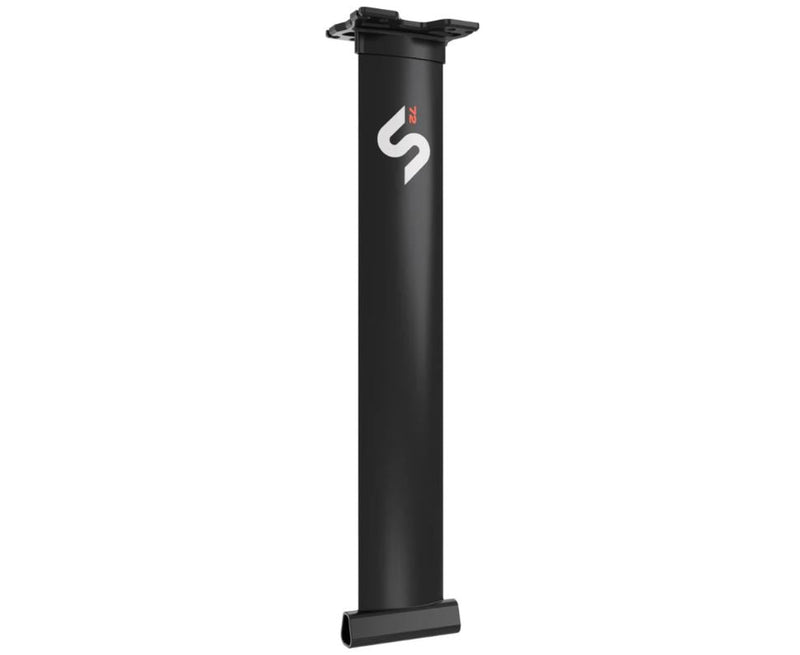

ONE-LOCK ALUMINUM MAST:
LIGHT / PREDICTABLE / AFFORDABLE
The Aluminum Mast is perfect for riders seeking an affordable entry into the One-Lock system. It offers excellent control and responsiveness without the higher cost of carbon. The wide range of sizes makes it easier to have multiple mast lengths for different needs.
The One-Lock Aluminum Mast is the lightest aluminum mast on the market. Constructed with 6061 grade aluminum, the design optimizes aluminum placement for maximum weight savings and stiffness. The mast’s chord sits at 118mm, achieving a perfect balance between efficiency, stiffness and weight. This combination delivers direct and precise feedback. At the mast’s foot, our optimized One-Lock collar enhances efficiency and minimizes drag by ensuring smooth water flow from the front wing to the stabilizer, all while holding true to our durability standards. The mast also includes our RTS foil board mounting kit, which dramatically simplifies setup. Once the mast’s position is set, you can fully assemble and disassemble your foil in under 30 seconds, without the need for tools.
The Aluminum Mast is designed to maximize weight savings in an aluminum construction without loss of stiffness. Its low-drag, high-stiffness profile reduces takeoff speed, making it one of the most efficient aluminum masts on the market. The aluminum alloy and screwless assembly eliminates oxidation while also decreasing overall drag.
The One-Lock Aluminum Mast is the lightest aluminum mast on the market, offering a perfect balance of affordability, stiffness, and durability. Designed for optimal performance, it features advanced construction techniques and materials to deliver precise control and responsiveness. This mast is perfect for riders seeking an affordable entry into the One-Lock system.
Speed Range Optimized Profile- Slingshot's Aluminum Mast utilizes the same profile as our Carbon Masts. For the aluminum version, they increased the overall thickness to enhance stiffness without adding weight. Additionally, they eliminated screws from the pedestal and mast foot, optimizing the construction for strength and preventing corrosion and seized screws. This design change also allowed us to place aluminum in the
optimal locations, maximizing the strength and stiffness-to-weight ratio.
Extruded Potted Collar- The Aluminum Mast line features an extruded collar that enhances the feel of the foil by keeping drag low. With no screws holding the collar in place, drag is further minimized. Instead of screws, the collar is potted onto the bottom of the extruded
aluminum mast, providing unparalleled response.
Construction- The Aluminum Mast line is constructed with extruded 6061-grade aluminum, keeping weight low while maintaining high stiffness. This aluminum grade also
offers natural resistance to corrosion.
- 6061 Aluminum Construction
- Optimized Chord Design
- Potted Collar Connection
- Internal Connection System
- Anodized Surface Finish
- Durability Standards
- Effortless Setup
Length (cm)- 52 (20.5"), 62 (25.4"), 72 (28.3"), 82 (32.3"), 92 (36.2")
Weight (lbs)-1.48, 1.66, 1.85, 2.0, 2.15

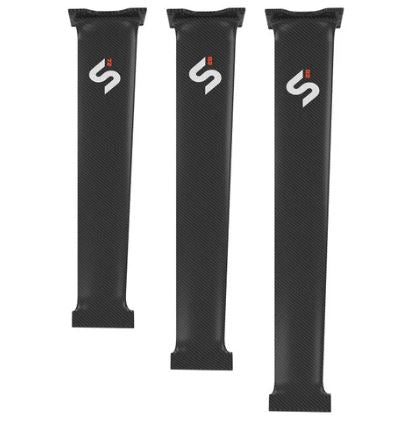

ONE-LOCK CARBON MAST
CARBON / LIGHT / MODULAR
The Carbon Mast Line is designed for riders looking to elevate performance and stiffness beyond the One-Lock Aluminum Mast line. The added stiffness provides increased confidence and control, making it easier to progress to more advanced maneuvers. As riders become comfortable with the aluminum mast, upgrading to the carbon mast will enhance glide through a more efficient profile. Available in three lengths, it offers customizable setup options to meet your specific foiling needs.
The One-Lock Carbon Mast is the stiffest standard carbon mast Slingshot ever made. Constructed with Mid-High Modulus Carbon and a hollow core, the design optimizes carbon placement for maximum strength and stiffness. The mast’s chord tapers from 118mm at the foot to 145mmat the base, achieving a perfect balance between efficiency and stiffness. This combination delivers direct and precise feedback. At the mast’s foot, our optimized One-Lock collar enhances efficiency and minimizes drag by ensuring smooth water flow from the front wing to the stabilizer, all while holding true to our durability standards. The mast also includes our RTS foil board mounting kit, which dramatically simplifies setup. Once the mast’s position is set, you can fully assemble and disassemble your foil in under 30 seconds, without the need for tools.
The Carbon mast is designed to optimize performance across a wide range of speeds and conditions. Its low-drag, high-stiffness profile reduces takeoff speed, making it one of the most efficient masts on the market. The increased chord enhances overall stiffness compared to other profiles, ensuring exceptional control and durability for everyday use.
The One-Lock Carbon Mast is our stiffest standard carbon mast to date, delivering precision, performance, and durability. Its low-drag, high-stiffness design enhances efficiency across a wide range of speeds and conditions, making it a game-changer for those transitioning from aluminum masts seeking more weight savings and stiffness.
- Mid-High Modulus Carbon Construction
- Tapered Chord Design
- Optimized One-Lock Collar
- Internal Connection System
- Hand-Finished Precision
- Effortless Setup
Length (cm): 72 (28.3"), 82 (32.3"), 92 (36.2")
Weight (lb) 3.79, 4.23, 4.52
ONE-LOCK HM CARBON MAST
HIGH MODULUS CARBON / STIFF / HIGH END
The High Modulus Carbon Mast is meticulously engineered to optimize performance across a wide range of speeds and conditions. Its low-drag, high-stiffness profile reduces takeoff speed, making it one of the most efficient masts on the market. The increased chord and High Modulus carbon construction enhances stiffness compared to other profiles, ensuring exceptional control and durability for everyday use.
The One-Lock HM Carbon Mast is the stiffest mast we’ve ever made. As a result, it delivers
unmatched control, faster response, and enhanced performance during maneuvers and glides. This mast prioritizes stiffness and precision to connect you with your foil like never before.
The HM Carbon Mast line is designed for those who prioritize stiffness above all else. Just as stiff suspension enhances the responsiveness of a sports car, this mast delivers unparalleled direct feedback on the water, allowing for quicker reactions and greater control. Riders seeking this level of precision will find the One-Lock HM Mast exceeds their expectations by improving their carving, tacking, speed, and glide.
- High Modulus Carbon Construction
- Tapered Chord Design
- Internal Connection System
- Hand-Finished Precision
- Effortless Setup
Length (cm): 72 (28.3"), 82 (32.3"), (36.2") 92
Weight (lb): 3.79, 4.23, 4.52

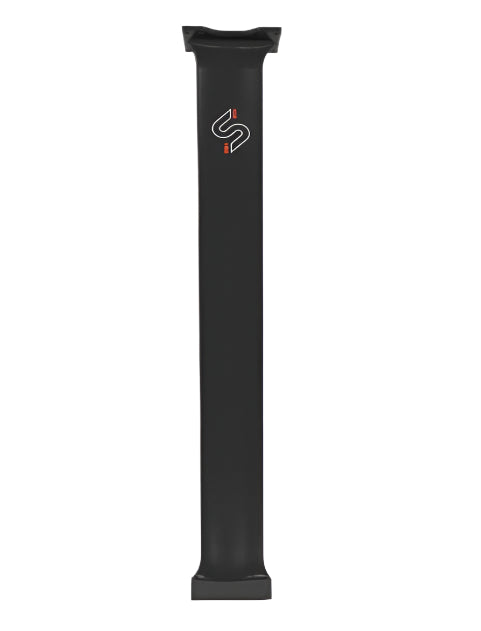

ONE-LOCK HM PRO 102 MAST
HIGH MODULUS CARBON / STIFF / HIGH END
Length (cm)- 102 (40.2")
Weight (kg)- 4.12 (9.1lbs)
The One-Lock High Modulus Pro 102 Mast builds on the High Modulus line with improved
performance across a broader speed range. Its low-drag, high-stiffness profile reduces takeoff speed while enhancing top-end speeds. The lowered average mast chord increases yaw responsiveness for quicker maneuvers. A new solid core layup boosts stiffness, offering smoother acceleration, faster riding speeds, and enhanced maneuverability, delivering an elevated kitefoiling experience compared to previous designs.
The One-Lock High Modulus Pro 102 Mast continues with the incredibly high stiffness of our High Modulus mast line. Featuring a new profile with an increase in speed range, this mast provides a smoother acceleration and faster overall riding speed. While at higher speeds seen in kitefoiling, the rider will notice the ability to turn with minimal effort is higher than our High Modulus mast line. This mast prioritizes stiffness, speed, and maneuverability while kitefoiling.
- High Modulus Carbon Construction
- Solid Core Layup
- Tapered Chord Design
- Lower Average Chord
- Max Acceleration Profile
- Internal Connection System
- Hand-Finished Precision
- Effortless Setup
Mounting Options-
Flush Mount: Use 25mm T30 Torx hardware and T-Nuts
T-Lock Mount: Use (4) T-Locks and T-Nuts.
RTS Mount:* Use RTS hardware and (2) T-Locks.
Multi-Hole Top Plate- All of Slingshot's One-Lock masts feature a multi-hole top plate with slits that allows riders to slide their bolts onto the mast without aligning T-nuts. This top plate is engineered to fit the RTS kit, enabling setup of the foil in under 15 seconds. Simply slide the front sleds under the anchors mounted on your board, use the preload to pull the mast snuggly down, and tighten the Slingshot T-locks on the back of the top plate. The preload ensures the mast stays securely in place.

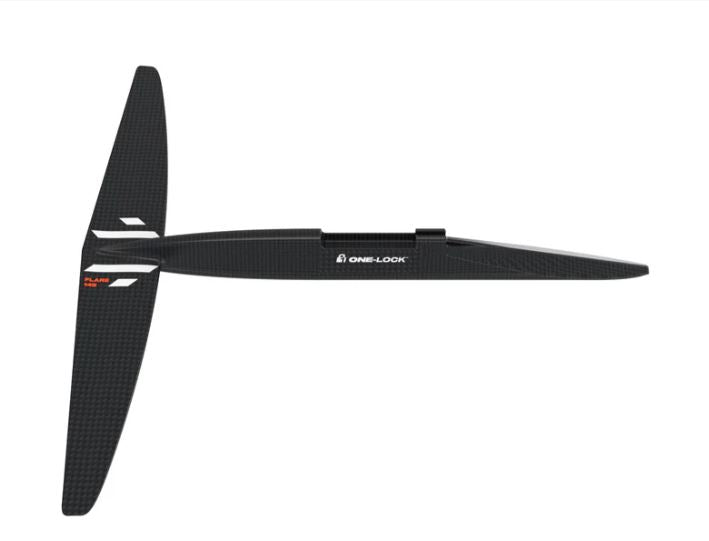

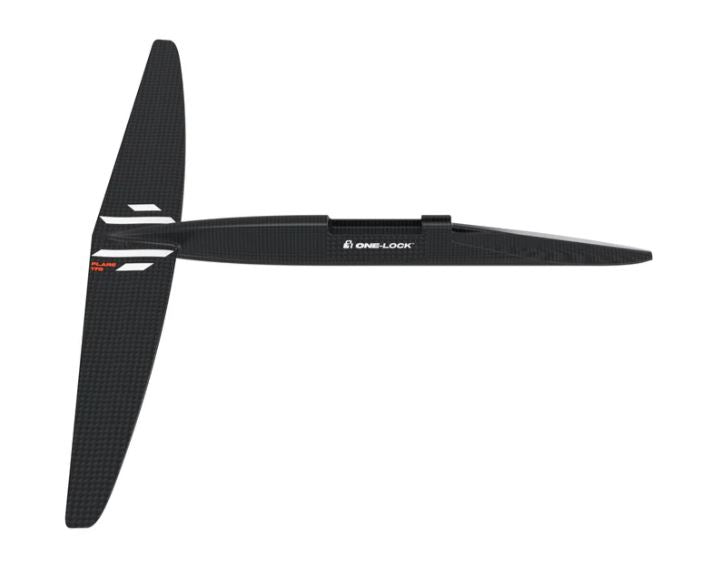

ONE-LOCK FLARE TAIL WING STABILIZER
Turn Sharper, Glide Longer, Foil Faster
Designed for advanced riders seeking enhanced acceleration and pumping, the Flare stabilizer line furthers Slingshot's pursuit of ultimate efficiency. The high camber profile and aspect ratio of 11 provides a perfect balance between lift, stability, and maneuverability. The 24cm fuselage length offers exceptional pitch response for sharper turns and effective wave transfers. As a result of the shorter fuselage length, the AOA was increased to counteract the loss of lift without impeding on maneuverability.
The One-Lock Flare line is Slingshot's most efficient and reactive low-drag stabilizer, offering the shortest fuselage and wing combo in the One-Lock system. Designed for maximum acceleration and pumping efficiency, it features an 11 aspect ratio, high camber profile, and high angle of attack (-3.5° in the 175 and -4.25° in the 145). This combination creates a perfect balance, enhancing the rider’s ability to maximize response from their foil system.
- One-Lock Latch Integration
- High Camber Profile
- Fillets
- High-Modulus Carbon Construction
- Flat Anhedral-Dihedral Curve
- Monobloc Stabilizer Design
- Hand-Finished Precision
