55mm:Propeller only(the 55mm propulsion has the LCS interface built in)
68mm:Propeller Kit(includes LCS Folding Glide Propeller, LCS Base Plate, and LCS Tail Cone)

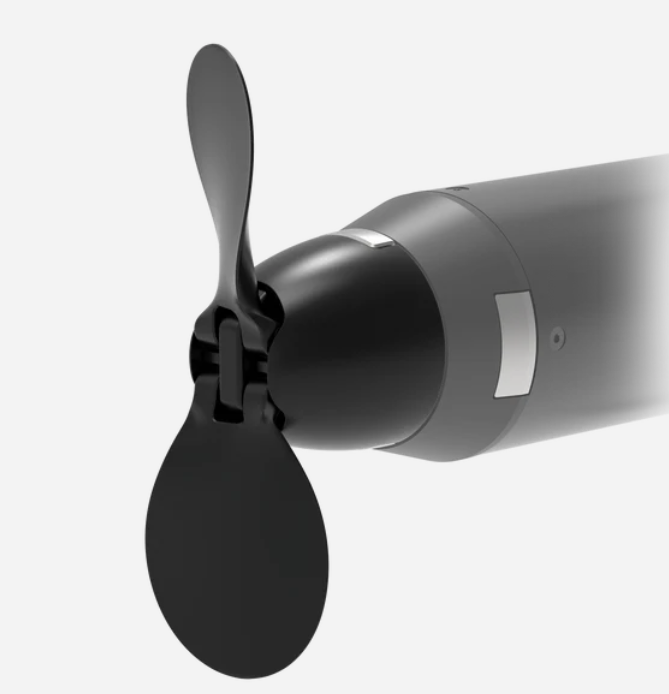

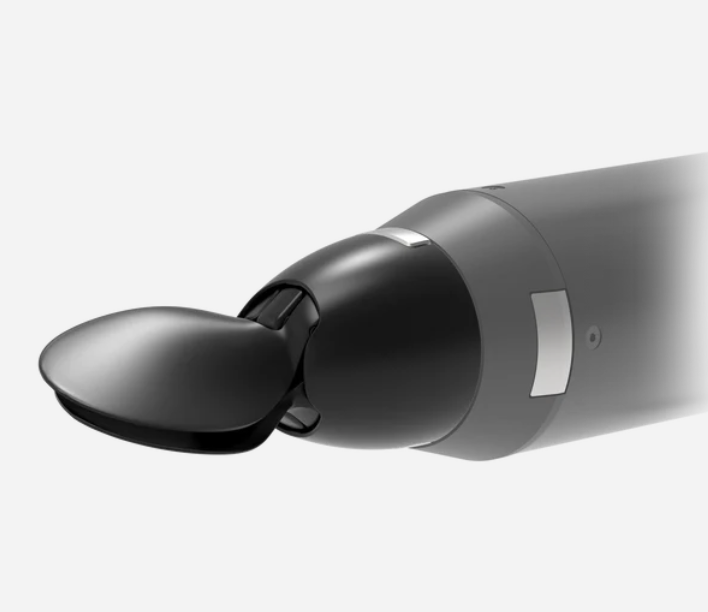

The LCS Folding Power Propeller is built on Lift's 2026 folding propeller redesign, a reshaped collapse and reinforcement at the highest-stress points. On that foundation, the Power runs its own blade geometry, sized and pitched for thrust and speed. Blades measure 1.8 inches at the widest section, the most blade in the folding line, with 6.3 inches of pitch on a 6 inch diameter. The wider blade drives the takeoff, and the higher pitch carries speed under power. It ships propeller-only for 55mm propulsions, or as a kit with the LCS Base Plate and LCS Tail Cone for any 68mm motor. Construction is aluminum with stainless steel inserts.
⚠️IMPORTANT: It is critical all eFoil equipment is turned off and the battery is disconnected before working with or around the motor or propellers.
Avoid contact with the spinning propeller, as it can cause severe injury or death.
Keep your fingers, toes, and body parts clear of the propeller at all times.
Do not handle the propeller while the battery is installed in the board.
Do not handle your propeller in the water.
Before You Buy
Which Motor Does Your eFoil Have?
The propeller you need depends on your motor size. Measure the diameter of the circular motor face — the end of your propulsion unit — and match it below.
1
Measure across the center of your motor face
Remove your existing propeller if installed. Using a ruler or calipers, measure straight across the circular end of the motor housing. Match your result to the options below.
68mm / 2.68"Motor face diameter
68mm Motor
eFoils with this motor size
LIFT5All sizes
LIFT5 FAll sizes
LIFT4All sizes
LIFT3All sizes
LIFT3 FAll sizes
Note on the LCS Base Plate:LIFT5 ships with it pre-installed. LIFT5 F, LIFT4, LIFT3, and LIFT3 F have a bare 68mm motor face — the Base Plate is included in the 68mm Kit and installs first.
55mm / 2.17"Motor face diameter
55mm Motor
eFoils with this motor size
LIFTXAll sizes
No adapters needed.The 55mm propulsion already has the LCS interface built in. The propeller threads directly onto the motor shaft.
What’s in the Box
Select your motor size above — here’s exactly what ships to you.
68mmLIFT5 · LIFT5 F · LIFT4 · LIFT3 · LIFT3 F
1
LCS Base Plate
Mounts to the 68mm motor face
Included
2
LCS Tail Cone
Installs onto the Base Plate
Included
3
LCS Folding Propeller
Threads onto the Tail Cone
Included
Everything in one box.All 3 components are included in the 68mm LCS Folding Power Propeller — no separate orders needed.
55mmLIFTX · All sizes
1
LCS Folding Propeller
Threads directly onto the 55mm motor shaft
Included
Just the propeller — nothing else needed.No Base Plate, Tail Cone, or adapters required. The 55mm propulsion already has the LCS interface built in.
Glide or Power?
Both propellers fit 55mm and 68mm motors. The difference is in the ride.
