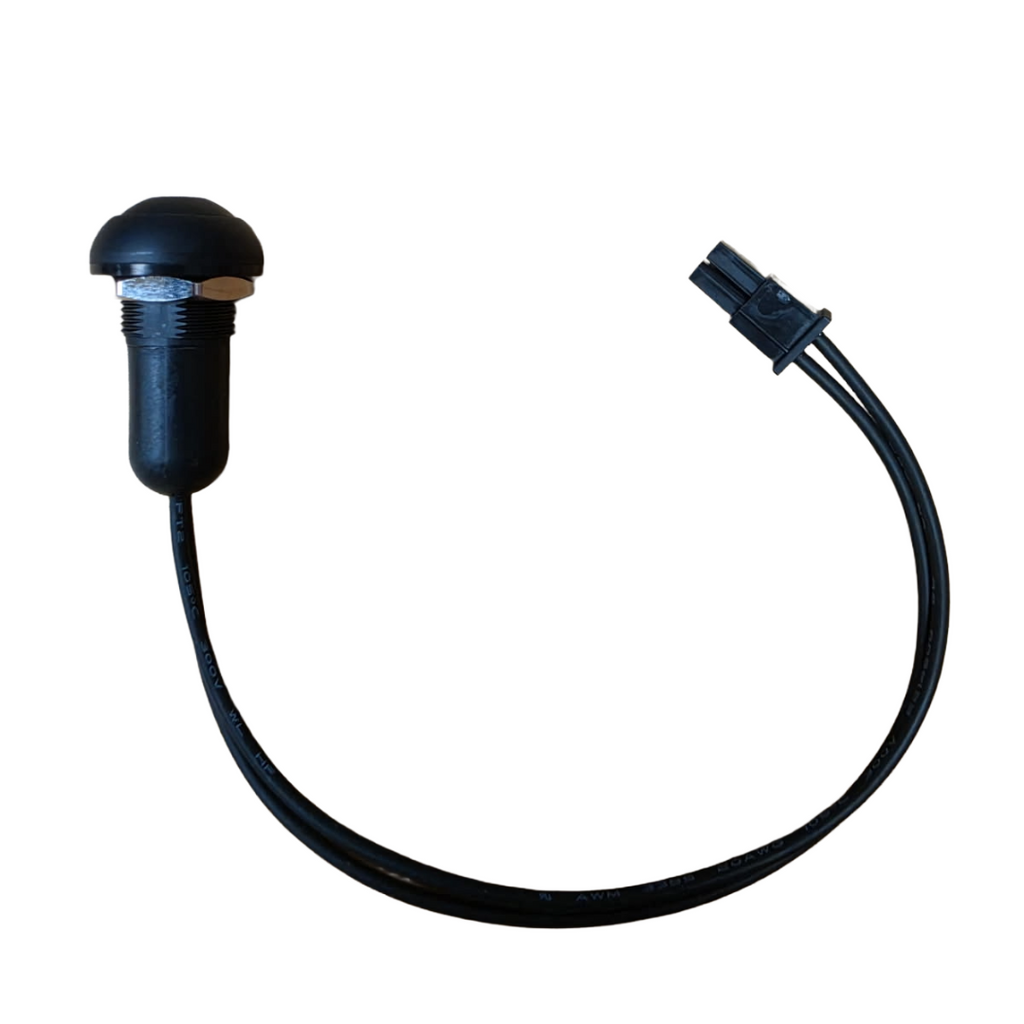

Lift Black Momentary Relay Switch Sub-Assembly
Replacement Bluetooth pairing relay button for compatible Lift3 and Lift4 eFoil eBoxes.
The Lift Black Momentary Relay Switch Sub-Assembly replaces a damaged, stuck, or non-responsive relay button used during hand-controller pairing on compatible Lift3 and Lift4-generation eFoils.
When pressed and held, the momentary switch places the eBox into Bluetooth pairing mode so a compatible Lift hand controller can connect to the board.
Key Features
- Replacement momentary relay switch assembly
- Used to initiate eBox Bluetooth pairing mode
- Black button matches the original Lift eBox component
- Designed for compatible Lift3 and Lift4-generation systems
- Genuine replacement-style electronic sub-assembly
Compatibility
- Compatible Lift3 eFoil eBoxes
- Compatible Lift4 eFoil eBoxes
Not intended for LIFT5 or LIFTX eFoils. Those systems use a different controller-pairing procedure and electronic configuration.
Lift has produced multiple eBox and connector configurations. Confirm the eFoil generation, eBox model, connector style, and part appearance before ordering.
Pairing Function
On compatible Lift3 and Lift4-generation systems, the relay switch is pressed and held to place the eBox into pairing mode. The hand controller can then complete the Bluetooth connection with the board.
This replacement component does not include a hand controller, eBox, power switch, wiring harness, battery, or other electronics unless specifically shown.
What’s Included
- One Lift Black Momentary Relay Switch Sub-Assembly
Installation Notice
This is an internal electrical replacement component. Disconnect and remove the eFoil battery before inspecting or servicing the eBox. Installation should be completed by an experienced technician or authorized Lift service provider.
Verify that all electrical connections, mounting points, seals, and hatch components are correctly installed before reconnecting the battery or operating the eFoil.
Important Safety Information
Once the battery is connected and the hand controller is paired, the controller can activate the motor and propeller. Keep the battery disconnected during service and keep hands, tools, clothing, and body parts away from the propulsion system.
