Name: Foil Drive Universal Mini Pod
Brand: Foildrive
SKU: 2121589631
Price: 249.0 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

A toolless, instant latching, universal motor pod that reduces drag, improves ride feel, and makes mast swaps fast and screw free.

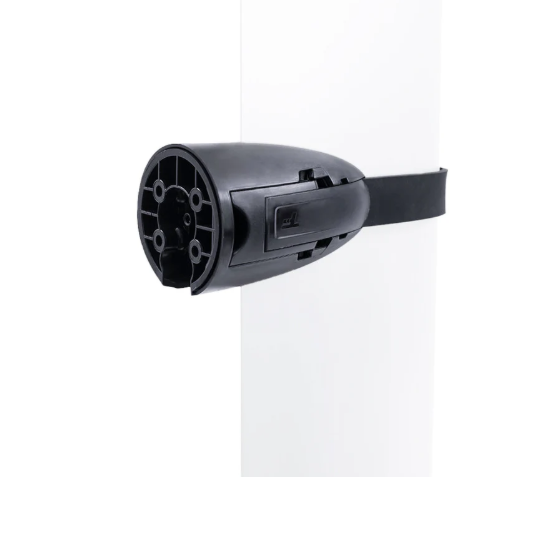

The Universal Mini Pod redefines universal mounting through reduced surface area and drag, ease of use and ultimate compatibility. Install is simplified thanks to the toolless strap and latch system, the Mini Pod can be installed or removed in seconds, making it ideal for riders chasing performance enhancement while remaining fully removable and adaptable.

The low profile shape of the Mini Pod adopts the smaller form factor of integrated masts while remaining 100% removable, meaning it’s the perfect upgrade if you’re seeking full adaptability, simpler install and improvement to ride feel without committing to an integrated mast.

Details

icon

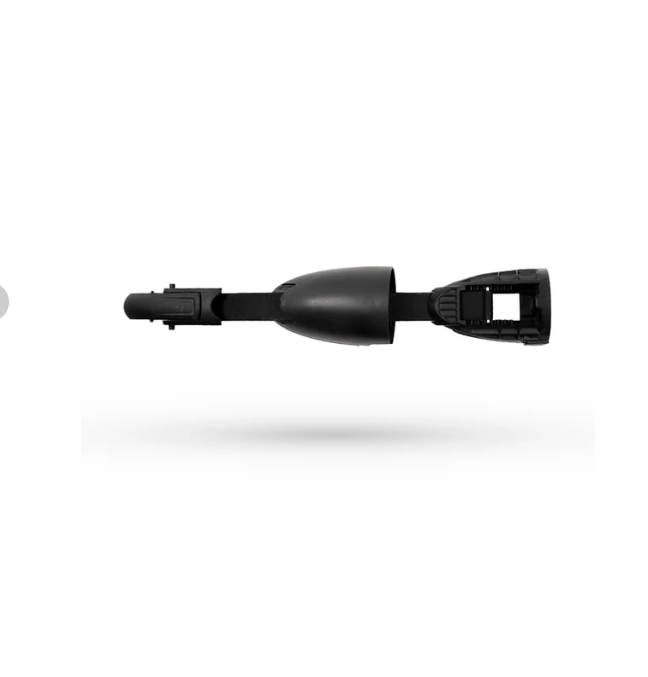

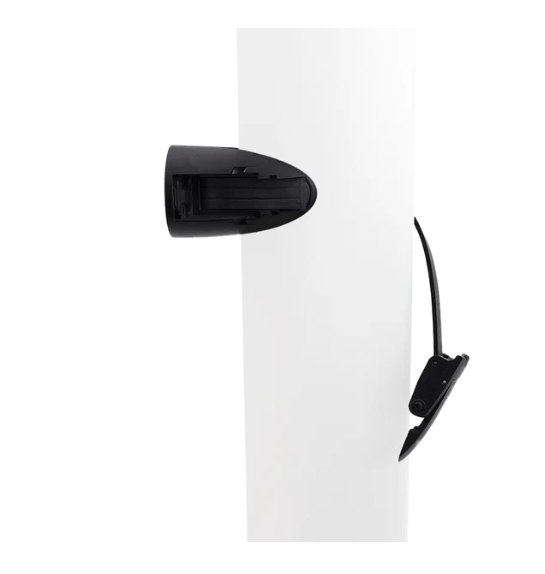

A three part design features an Inner Pod that mounts to the V2 Motor, and a removable Outer Pod that intentionally deforms to the shape of your mast, much like the existing pod. These two components slide onto the mast and are then secured in position with a EPDM, Aramid Fibre reinforced Rubber Strap (3 Size options included).

The smaller size minimizes wetted area, reducing drag and turbulence commonly found in traditional universal mounts. Riders will notice improved motor traction, smoother surface motoring, easier take-offs, and cleaner recovery with touchdowns.\

Tech Specs

icon

Install Type: Toolless and instant-latching. Inner Pod requires one time mounting to the motor using provided M4 x 16mm mounting to the motor using motor-mounted).
Strap Dimensions: Dimensions are a guide only and can be used against the width (chord) of your mast. Small: 95-110mm Medium 112-128mm and Large 130-145mm are provided. MOST masts in the market utilize the Medium Strap. See FAQ for more on mast compatibility.
Materials: The Outer and Inner Pod are injection moulded from ABS, built to handle sun, salt, and repeated use. The straps are EPDM rubber reinforced with Aramid fibre, giving them the strength and flexibility to hold up against typical UV degradation and saltwater environments.

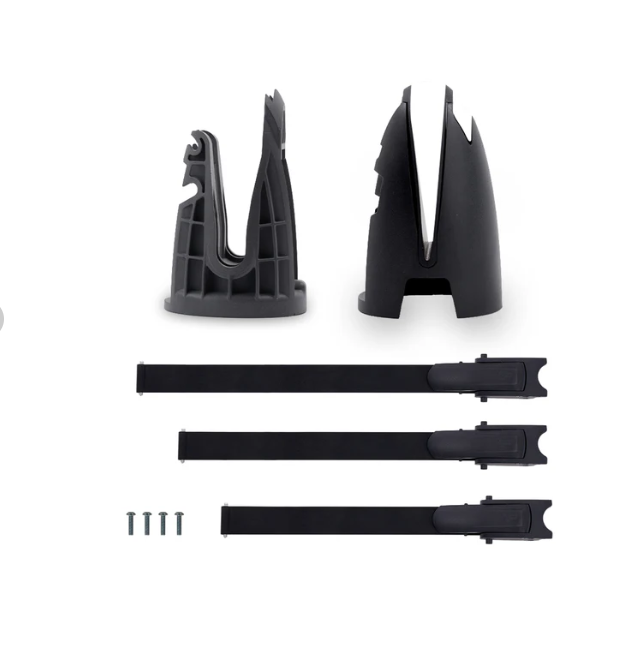

What’s Included

icon

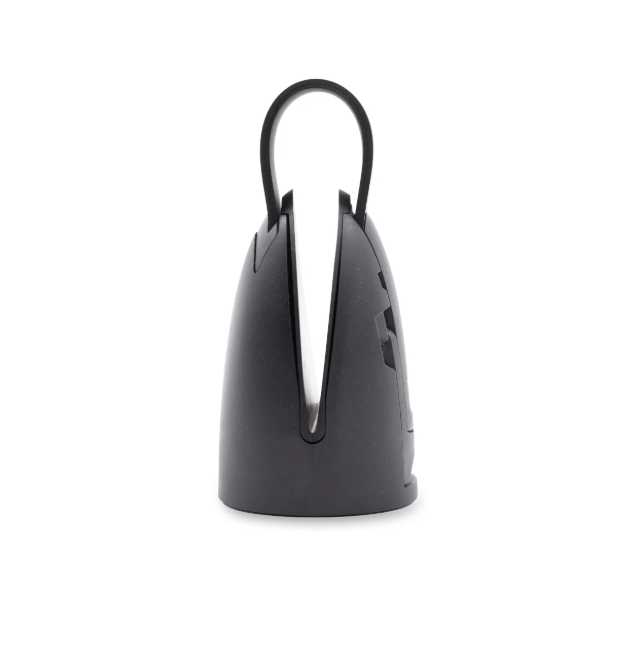

1x Outer Pod: Smooth hydrodynamic shell that houses all components to reduce drag, with an internal rubber insert for mast protection, fit adjustment, and vibration dampening.

1x Inner Pod: Attaches directly to the motor and slides into the Outer Pod, featuring an adjustable ladder system for different mast sizes and tapers.

3x Pod Straps:interchangeable strap lengths provide a secure universal fit with quick, toolless installation. Small: 95-110mm Medium 112-128mm and Large 130-145mm.

4x M4 x 16mm Bolts: To mount the Inner Pod to your motor.

1x Mast Cable Guide: To secure the cable of your motor, to the mast

Note: You will require electrical tape or similar to secure the Motor Cable to the mast. Not included.
