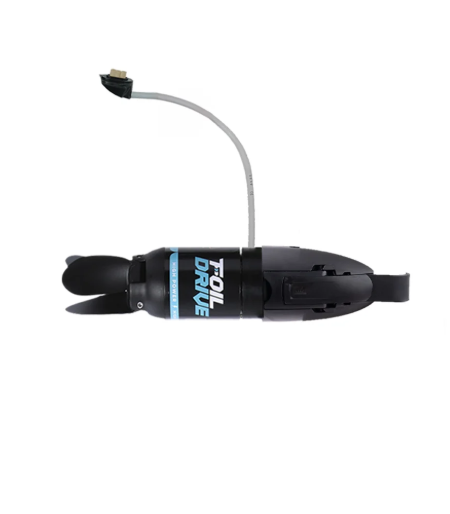

Ready to electrify your foil setup? The Mini Pod Retro-fit High Power Motor Bundle includes our latest and highest performance motor components needed to quickly install or remove Foil Drive power to your existing mast.
Combining the low-profile Universal Mini Pod, High Power V2 Motor and Three Blade Propeller setup, this is our go-to retro-fit configuration for the most takeoff thrust, efficient surface motoring and easiest performance across assisted foiling disciplines.
Details:

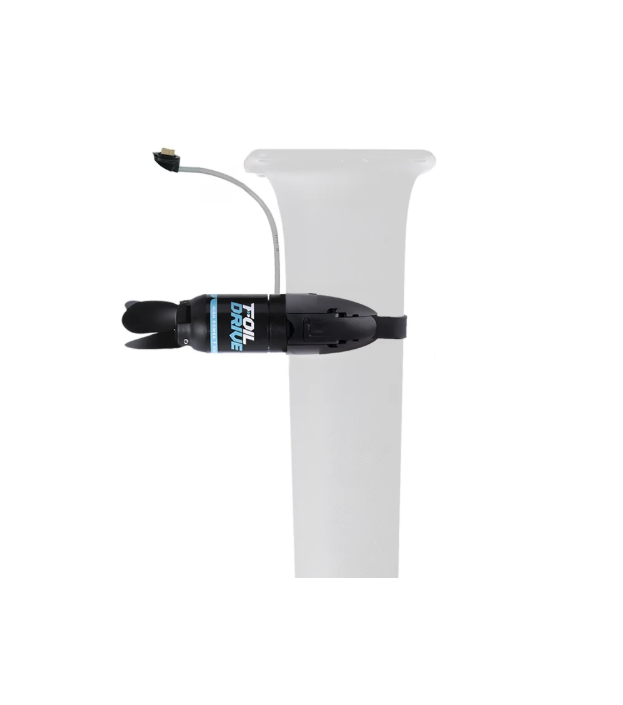

The Universal Mini Pod creates a clean, low-drag connection between your motor and foil mast while remaining fully removable and adjustable without tools.
Paired with the High Power V2 Motor, the setup delivers the most low-end thrust and more runtime power delivery.
The Three Blade Hub and Standard Propellers now come standard with the bundle, creating our most popular all-round motor configuration for punchy acceleration, smooth power delivery and efficient battery life.
A 20cm removable motor cable positions the motor at a versatile starting height for surf, pumping, wing, downwind, wake and flatwater assisted foiling. As riding progresses or your setup changes, the removable cable can be swapped for another length.
For dedicated eFoiling, a longer 60cm or 70cm cable is recommended and available seperately.
Features:
- Adjustable motor position on mast
- Toolless Mini Pod installation and removal
- Interchangeable motor cable lengths
Tech Specs
- High Power V2 Motor
- Universal Mini Pod retro-fit mounting system (low drag)
- 20cm removable motor cable
- Three Blade Hub
- Standard Three Blade Propellers
Included
Universal Mini Pod:
Outer Pod: Smooth, hydrodynamic outer shell
Inner Pod: Attaches directly to the motor and slides securely into the Outer Pod
3x Pod Straps:
Small: 95–110mm
Medium: 112–128mm
Large: 130–145mm
High Power Motor:
High Power Stator
High Power Rotor
Motor Cable:
20cm Removable Cable
Rubber Cable Guide
Propeller Setup:
Three Blade Hub
Three Standard Propellers
Hardware:
4x M4 x 16mm Stainless Steel Bolts - Inner Pod to Motor
5x M4 x 10mm Stainless Steel Bolts - Motor to Three Blade Hub
3x M3 x 30mm Stainless Steel Bolts - Three Blade Hub to Propeller
Protection:
Neoprene Motor Protection Cover
Compatible with:
Compatible With All Foil Mast Brands
Designed as a Retro-fit Motor solution for riders wanting to add Foil Drive to their existing foil setup.
Not Compatible with Gen1 Assist or Assist Plus
Universal Mini Pod uses interchangeable straps to accommodate a wide range of foil mast profiles.
Removable V2 motor cable allows the motor height to be changed depending on your board, mast and riding style.
For dedicated E-Foiling, pair the motor with a longer 60cm or 70cm removable cable.
