Foil Drive Fusion 860 Battery w/ caddy

Foil Drive Fusion 860 Battery with Caddy and Case

For info call or text: (281) 508-6485 or email: sales@houstonkiteboarding.com

The Fusion 860 Battery delivers long-range power, efficiency, and intelligent management, providing 40% more thrust and 2x the runtime of a MAX Power Battery. Built on a higher 43 Volt architecture with 860 Watt hours of capacity, it unlocks hour-plus to multi-hour sessions in a compact, hydrodynamic form.

Integrated

The integrated one-piece molded design combines the battery and nose cone as a unified sealed unit, improving water flow, and durability, all while balancing weight directly over the foil’s center of lift.

Intelligent

An Intelligent Bluetooth Module (BMS) provides accurate battery data to the V3 Controller, giving clear percentage and status readouts. The Battery also connects to the Foil Drive App where you can name each battery, track it's health and view it's live battery State of Charge (SoC). Check the surf camera and your battery charge without lifting a finger!

Consistent

Internal thermal management keeps temperature stable and maintains consistent power through the full discharge curve, ensuring smooth thrust delivery from start to finish.

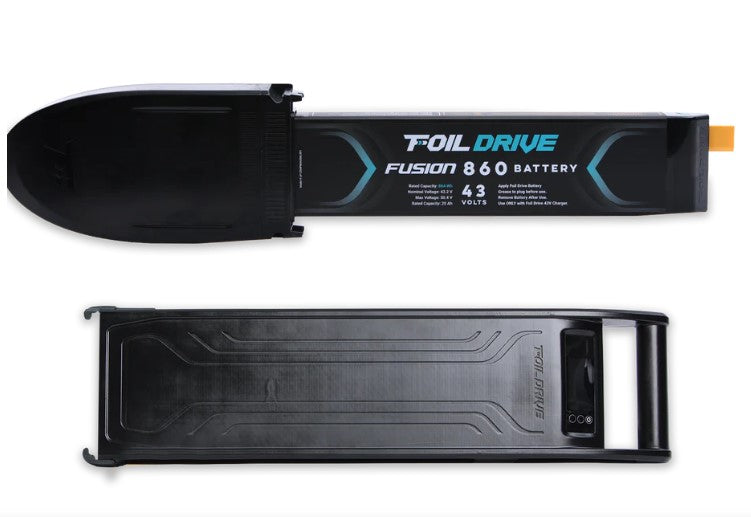

The Caddy

Charging and care are even simpler than ever before. The included Battery Caddy not only protects your battery during transport but can discharge to recommended storage levels. Either use the systems inbuilt heat sync to discharge, or fast track the process by using the systems USB A and USB C Ports to charge a phone, laptop or your Foil Drive controller!

The Fusion 860 Battery works seamlessly with the Battery Caddy, it allows for charge and discharge of the Fusion 860. The screen display allows you to monitor battery information and charge/discharge cycle.

Note: You can charge with or without the Battery Caddy. The Battery Caddy allows you to monitor the charge cycle and time remaining.

The Charger

The Fusion 860 Battery requires 43V Charger (Provided with your Fusion System) to charge. Averaging 1.45-hour charge time with an industry first Storage Mode that allows you to limit charging to then store your batteries for long-term battery health. We recommend storing you battery between 30 and 60% State of Charge (SoC).

The Battery

This high-capacity battery is designed for long sessions, reliable power delivery, and maximum system utility.

Key Features of the Fusion 860 Battery

• Intelligent Bluetooth Module (BMS) connects to the APP for live SoC and Battery Health
• Included Battery Caddy protects your battery and provides discharging options
• One-piece molded design combines the battery and nose cone as a unified sealed unit
• Incredible Power to Weight Ratio, when combined with the Fusion, the distribution of weight under foot makes its extra size almost unnoticeable.

Tech Specs

• Rated Capacity: 864 Wh
• Amp Hours: 20 Ah
• Battery Voltage: 43 V
• Nominal Voltage: 43.2 V
• Max Voltage: 50.4 V
• Battery Weight: 7.8 kg (17.1 lbs)
• Power to Weight Ratio (Installed): 4.35 /kg
• Dimensions of Battery: L575 × W122 × H54 mm
• Dimensions Installed:  L658 x W125 x H54mm
• Nose Cone: Not Requires - Integrated
• Battery Type: Lithium-Ion
• Water Rating: IP69 Water and Dust Resistance
• Certified: UN, CE, FCC, WEEE, RoHS
