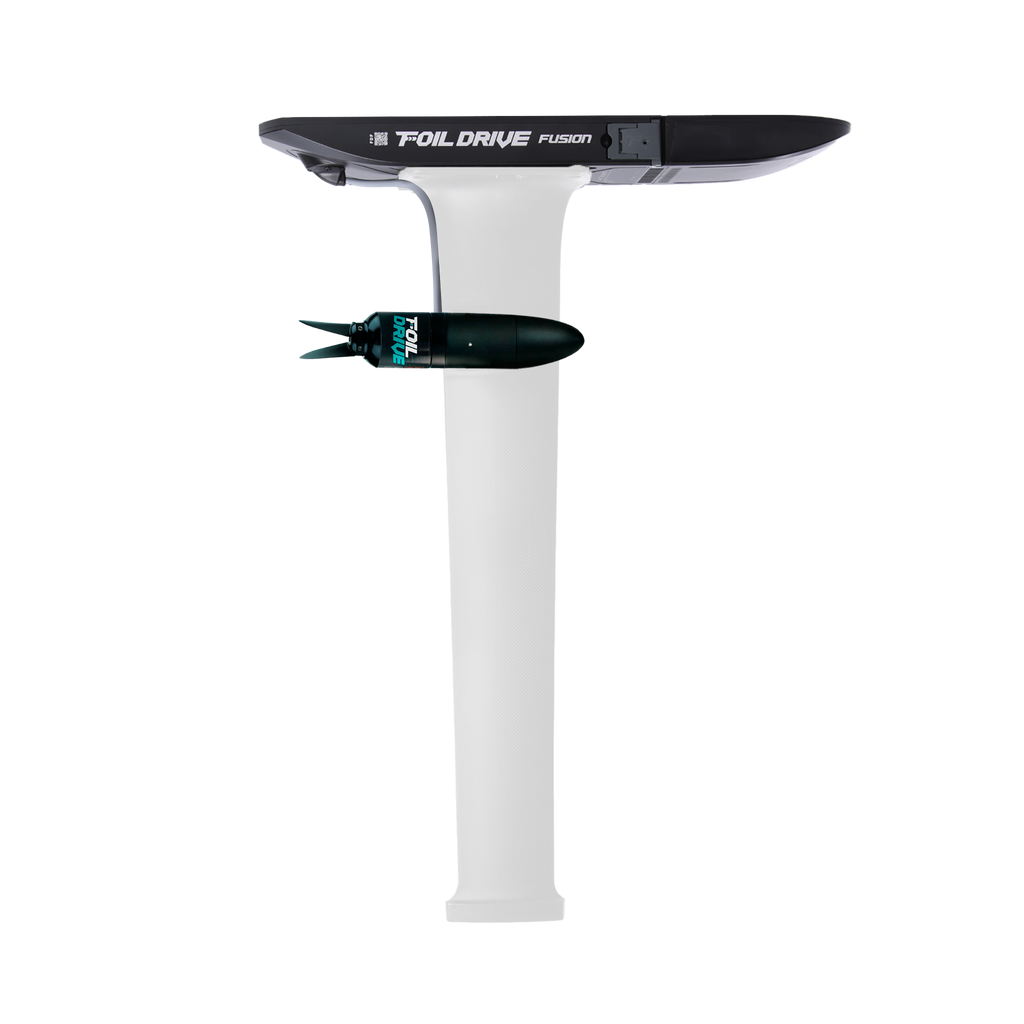

Foil Drive Fusion Unit with High Power Motor & 860Wh Battery
The Ultimate Hybrid eFoil Assist System
The Foil Drive Fusion Unit blends the power and runtime of an eFoil with the lightweight adaptability of a traditional foil assist system. Designed as a true hybrid solution, the Fusion delivers exceptional thrust, extended runtime, and unmatched versatility for riders of all levels.
Whether you're learning to foil, extending your wave count, or pushing performance limits, the Fusion adapts to your riding style. With a simple cable adjustment, the system transforms between a powerful long-runtime eFoil alternative and an ultra-efficient assist system for surf, wing, wake, and downwind riding.

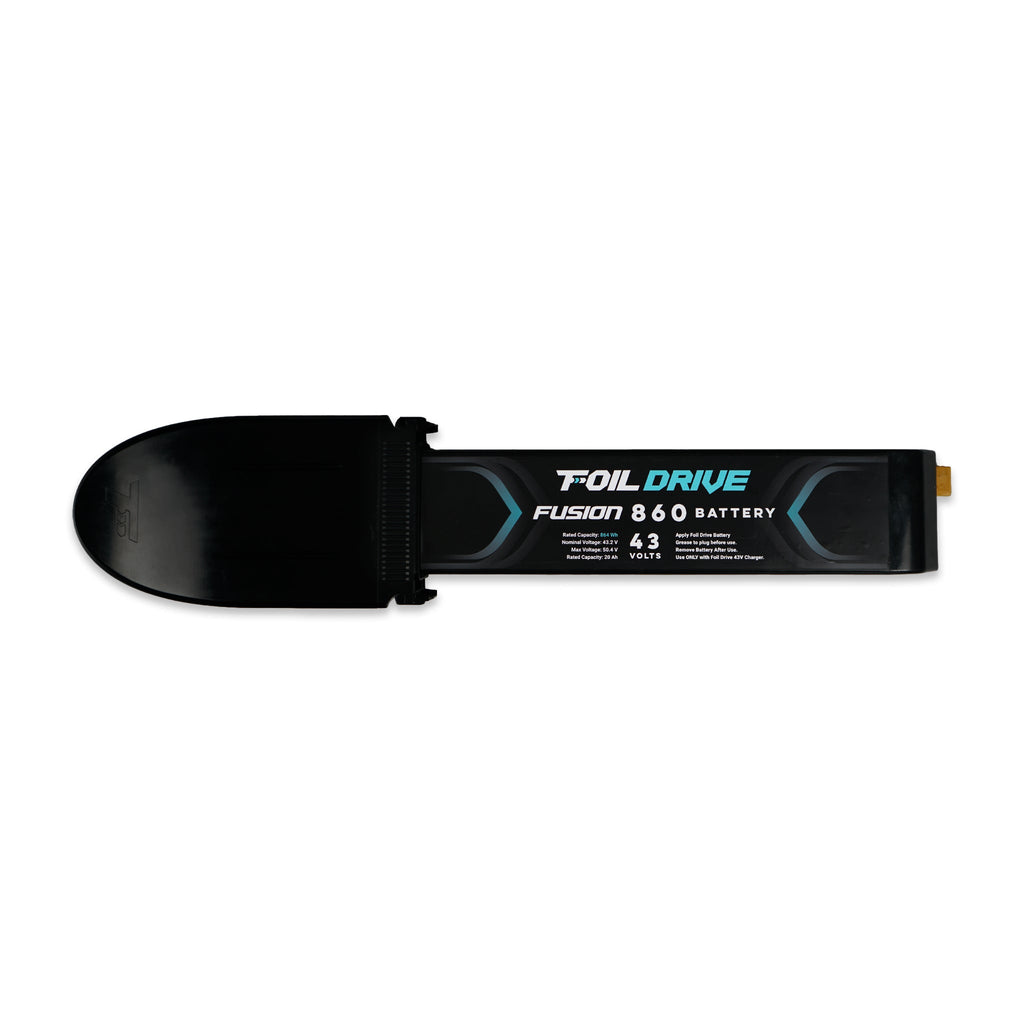

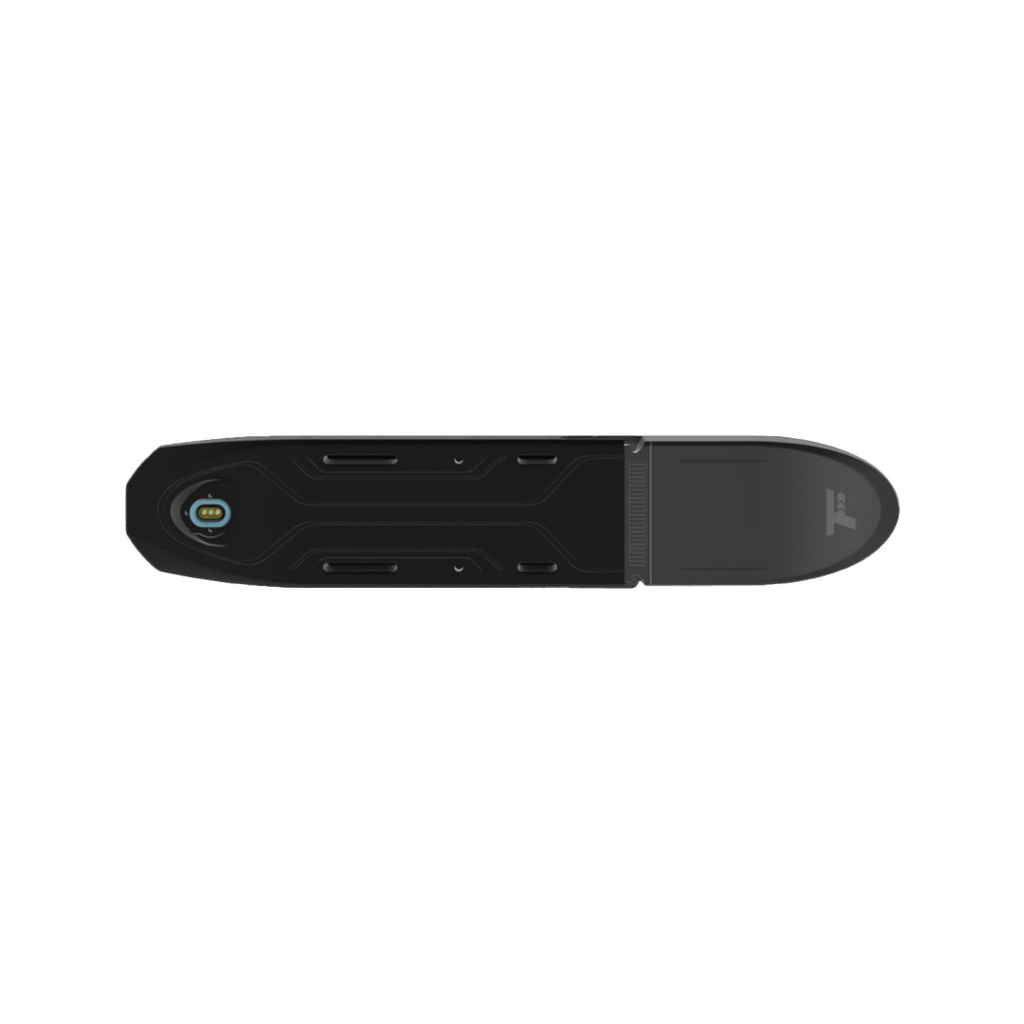

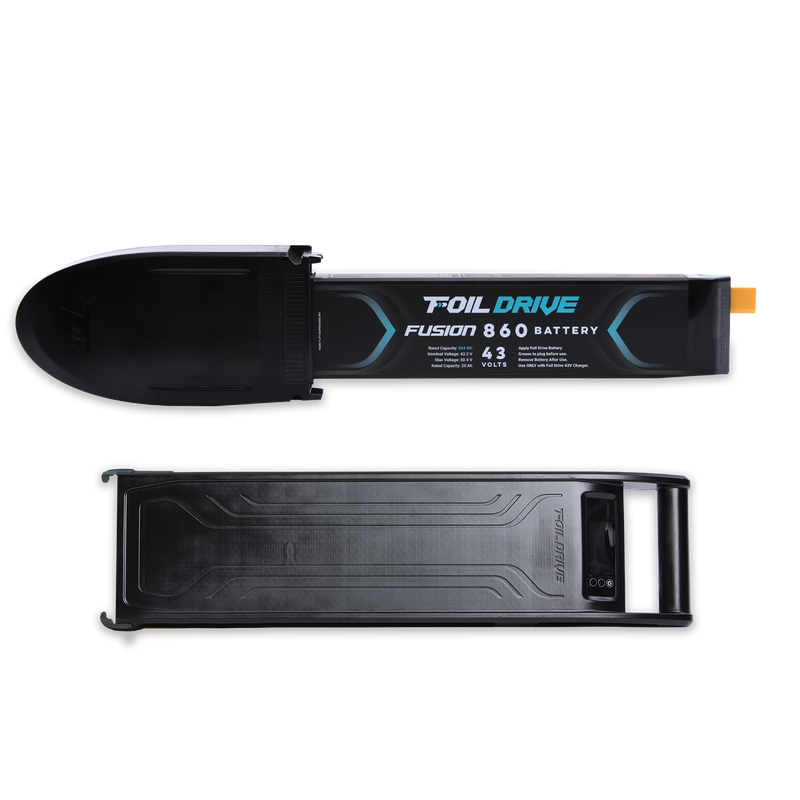

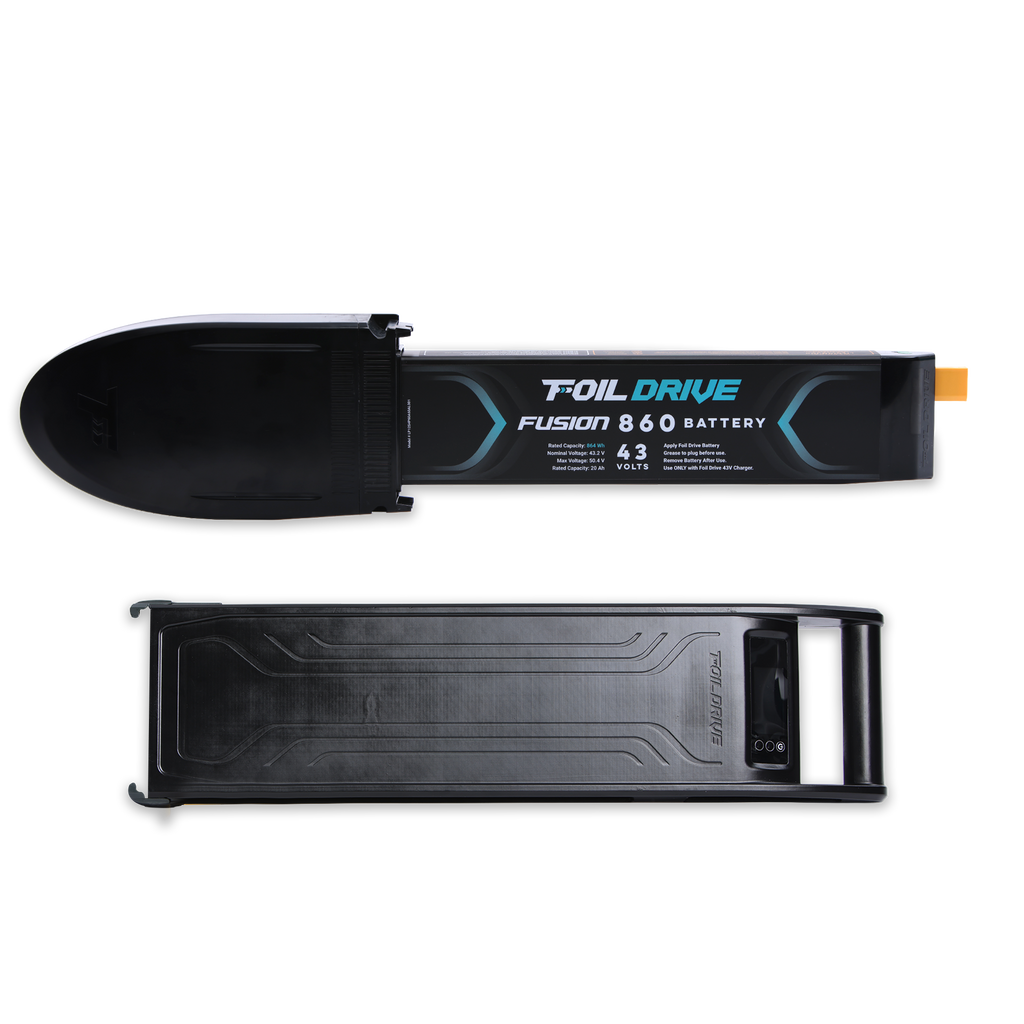

Powered by the Fusion 860 Battery (864Wh) and advanced 43-volt electronics, the Fusion delivers increased thrust, extended runtime, and industry-leading durability. The battery is housed in a rugged one-piece enclosure with an integrated nose cone for maximum protection and reliability.
Key Features
-
Hybrid eFoil & Assist System — Combines full-power performance with lightweight adaptability
-
Fusion 860 Battery (864Wh) — Extended runtime from 1 to 3 hours depending on usage
-
High Power Motor — Produces up to 34kg (74.9lbs) of thrust for strong acceleration and performance
-

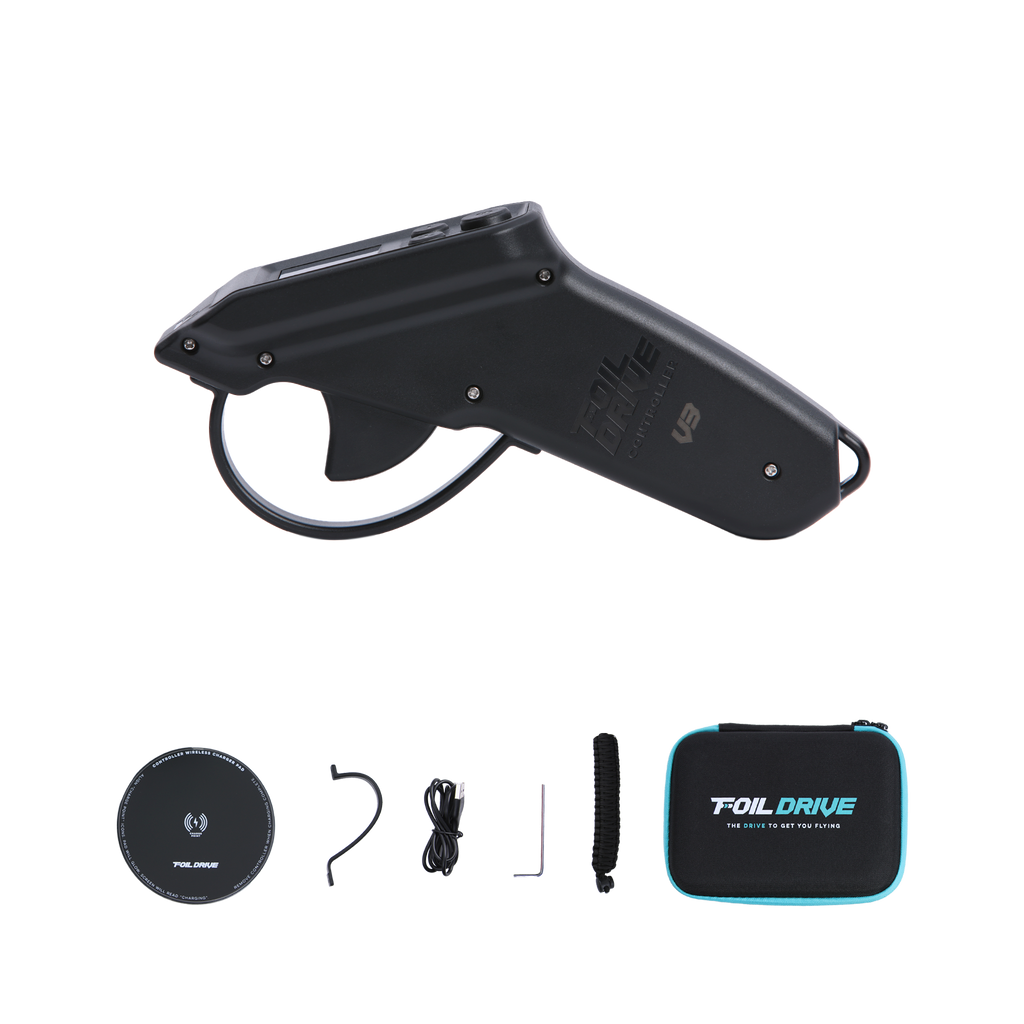

V3 GPS Controller — Displays speed, distance, and session tracking
-
Tilt Sensor Safety System — Automatically cuts motor power during falls
-
Bluetooth Firmware Updates — Easily update system software via mobile app
-
IP68 Waterproof Rating — Fully sealed system for harsh marine environments
-
Fast Charging — Approx. 1.45-hour charge time with storage mode support
-
Universal Motor Pod — Compatible with a wide range of hydrofoil setups
-
Integrated Battery Caddy — Functions as a storage discharger and USB power bank
-
Saltwater Protection Anodes — Increased longevity in marine environments
-
Durable One-Piece Battery Housing — Enhanced impact resistance and water sealing
Technical Specifications
| System Type |
Hybrid Electric Foil Assist / eFoil Alternative |
| System Voltage |
43.2V |
| Battery Capacity |
864Wh (Fusion 860 Battery) |
| Maximum Thrust |
34kg / 74.9lbs |
| Power-to-Weight Ratio |
4.35 N/kg |
| Installed System Weight |
17.1 lbs (7.8kg) |
| Runtime |
1–3 Hours (usage dependent) |
| Charging Time |
Approx. 1.45 Hours |
| Waterproof Rating |
IP68 |
| App Compatibility |
Foil Drive App (iOS & Android) |
| System Dimensions |
25.9 x 4.9 x 2.1 inches |
Who Is This For?
- Riders seeking a powerful eFoil alternative
- Beginner riders wanting longer ride time and smoother progression
- Intermediate riders building confidence and range
- Advanced riders needing additional thrust and runtime
- Wing, surf, wake, and downwind foilers
- Heavier riders requiring increased power output

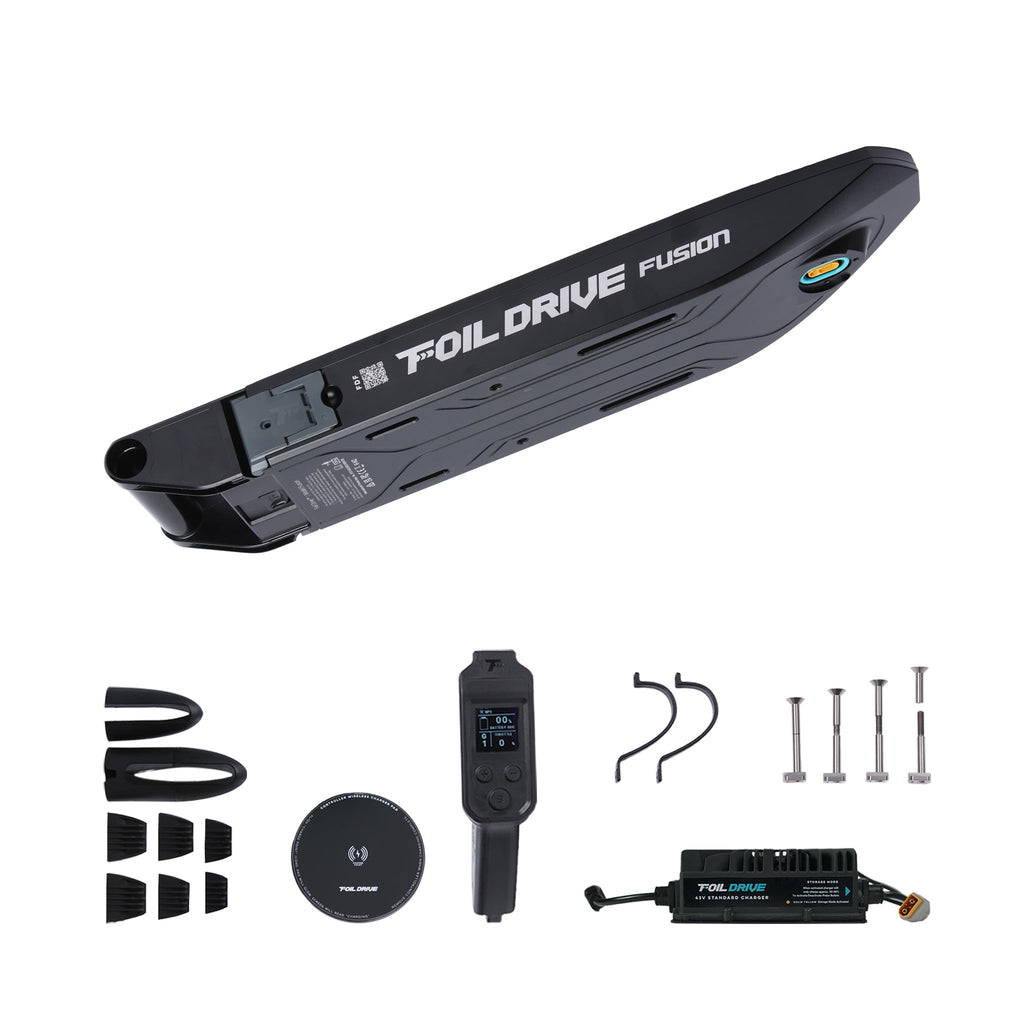

What's Included
Fusion System Components
- High Power Motor Pod
- Fusion 860 Battery (864Wh)
- V3 GPS Controller
- 43V Standard Charger (12 Amp)
- Mast Foam Track Guides (2x)
- Titanium Split Bolts (4x)
- Tool Caddy
- Sticker Pack
Controller Accessories
- Charging Pad and Cable
- Wrist Leash
- Bump Guard
- Allen Key
Tools & Hardware
- T40 Driver
- T30 Driver
- 2.5mm Driver
- Pick Tool
- Battery Grease Packs
- Nose Cone Rocker Pads
- Titanium Motor Bolts
- Replacement O-Rings
- Replacement Anode Kit
- Microfiber Towel
Performance Advantages
-
40% More Power compared to previous-generation systems
-
Up to 2x Runtime compared to MAX Power setups
-
Long Distance Capability for extended foil sessions
-
Enhanced Learning Safety with tilt-based motor cutoff
- Versatile Multi-Discipline Use
Compatible Riding Styles
- Surf Foiling
- Wing Foiling
- Downwind Foiling
- Wake Foiling
- Flatwater Foiling
Shipping & Technical Details
-
Shipping Box Dimensions: 30 x 14 x 8 inches
-
Shipping Weight: 27 lbs
-
Battery Capacity: 864Wh Lithium-Ion
-
Battery Classification: UN3480 Lithium Battery
-
Shipping Method: Ground Shipping Recommended
-
Warranty: Manufacturer Limited Warranty
Why Choose the Foil Drive Fusion?
The Fusion is built for riders who want maximum versatility without compromise. It delivers the power of an eFoil with the flexibility of an assist system, allowing riders to expand their range, improve progression, and unlock new riding possibilities.
Whether you're learning, progressing, or chasing performance gains, the Foil Drive Fusion Unit stands as one of the most advanced hybrid electric foil systems available today.
