Duotone Back Wing Stabilizer

Name: Duotone Back Wing Stabilizer
Brand: Duotone
SKU: 2121582625
Price: 209.0 USD
Availability: InStock

Whether it's for Wing Foiling, Prone, Pump Foiling, SUP Foiling, Kite Foiling, or Wind Foiling – here you will find the right back wing for your needs.

All these back wings require the Duotone D/lab Tail or Aero Aluminum 3BS Fuse - All Monobloc construction Tails are One-Piece and do not require these extra parts.

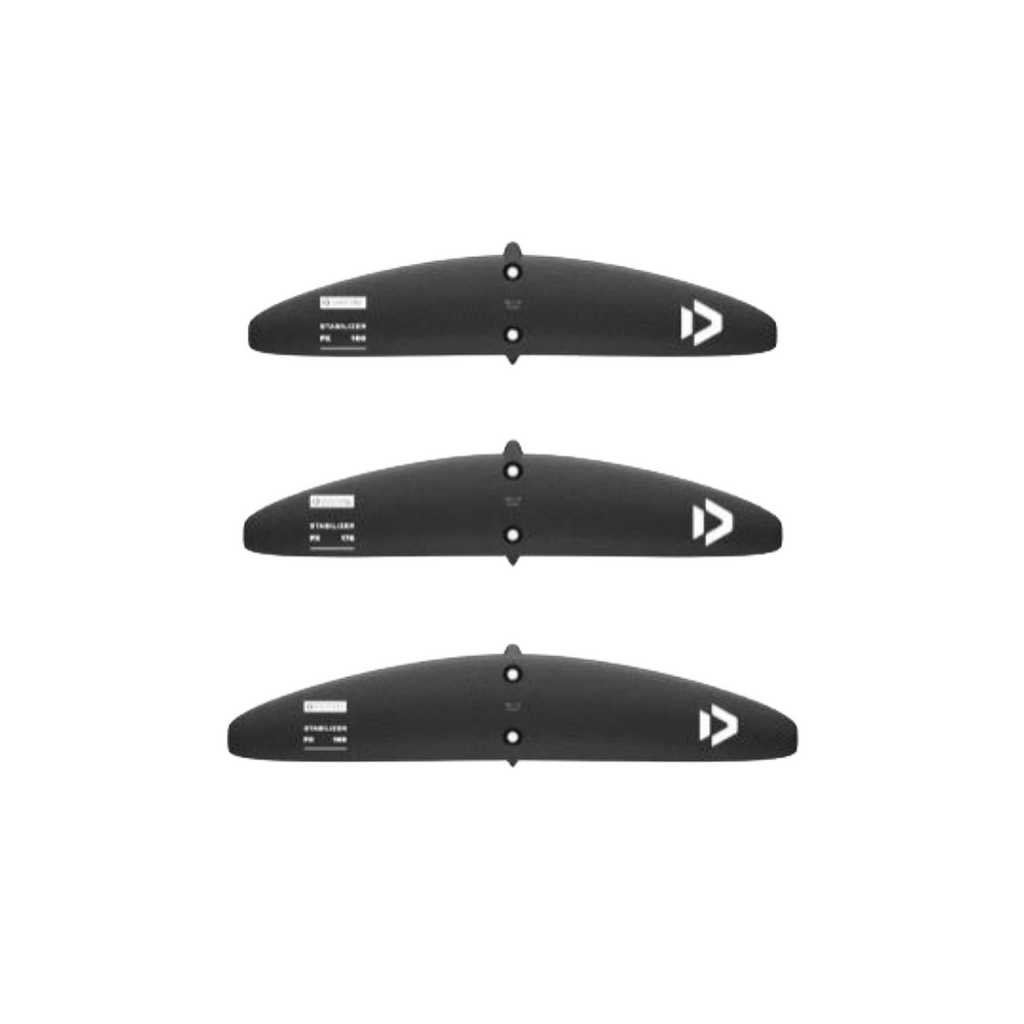

Back Wing Stabilizer PX

PERFORMANCE

PX stabilizer range replaces the previous Range of P Stabs.

The stabs look almost identical; the only thing we've changed is the twist in the profile, from the root chord to the tips.Although this might sound insignificant, our team actually found that this small tweak improved just about every aspect of the P stabs.

Better pitch control, more manoeuvrability and improved pumping.

The PX sizes come in a slightly smaller surface area than the P.

PX160 replaces P165

PX175 replaces P180

PX195 replaces P200

Expect a little less front foot pressure when changing from the P to the slightly smaller PX. The PX pairs perfectly with our new Carve 3.0 range but can also be used with any of our other front wings: Glide, Glide 2.0, Carve, Whizz, specially if you want to improve the general performance of your foil for high speed winging and kitefoiling or when you are tackling bigger and faster waves.

Surface (cm / in²)	160/24.8	175/27.1	195/30.2
Screw Info	2xM6x16	2xM6x16	2xM6x16
Rec. Torque	10NM	10NM	10NM

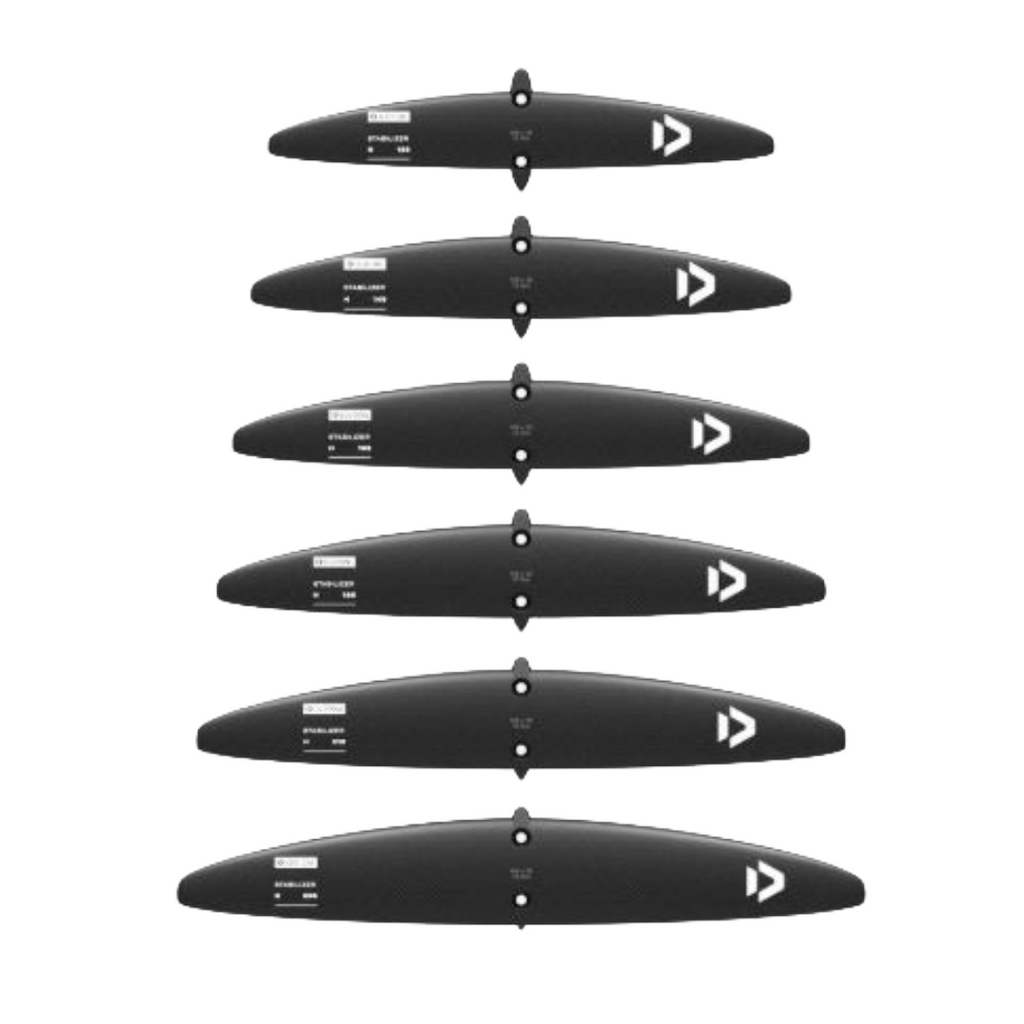

Back Wing Stabilizer H

High Aspect Stab

Highly efficient Stabilizer H matches the character of the glide and pumping oriented wings.

The projection, glide efficiency and drag are all enhanced, making the Stabilizer H the preferred stab of our Downwind Team and everyone chasing their personal pumping records.

Great balance

Great balance between pumping speed and low energy consumption for maximum distance

High aspect ratio

Straight outline with high aspect ratio

Optimized performance

Highly increased pumping and glide performance

Special Profile

Special Profile for maximum projection when pumping and low stall speed

Surface (cm / in²)	125/19.4	145/22.5	165/25.6	185/28.7	210/32.6	235/36.5
Span (cm / in)	33/12.8	35/13.7	37/14.6	39/15.4	42/16.5	44/17.5
Aspect Ratio	8.4	8.4	8.4	8.3	8.3	8.3
Screws	2xM6x16	2xM6x16	2xM6x16	2xM6x16	2xM6x16	2xM6x16
Rec. Torque	10NM	10NM	10NM	10NM	10NM	10NM

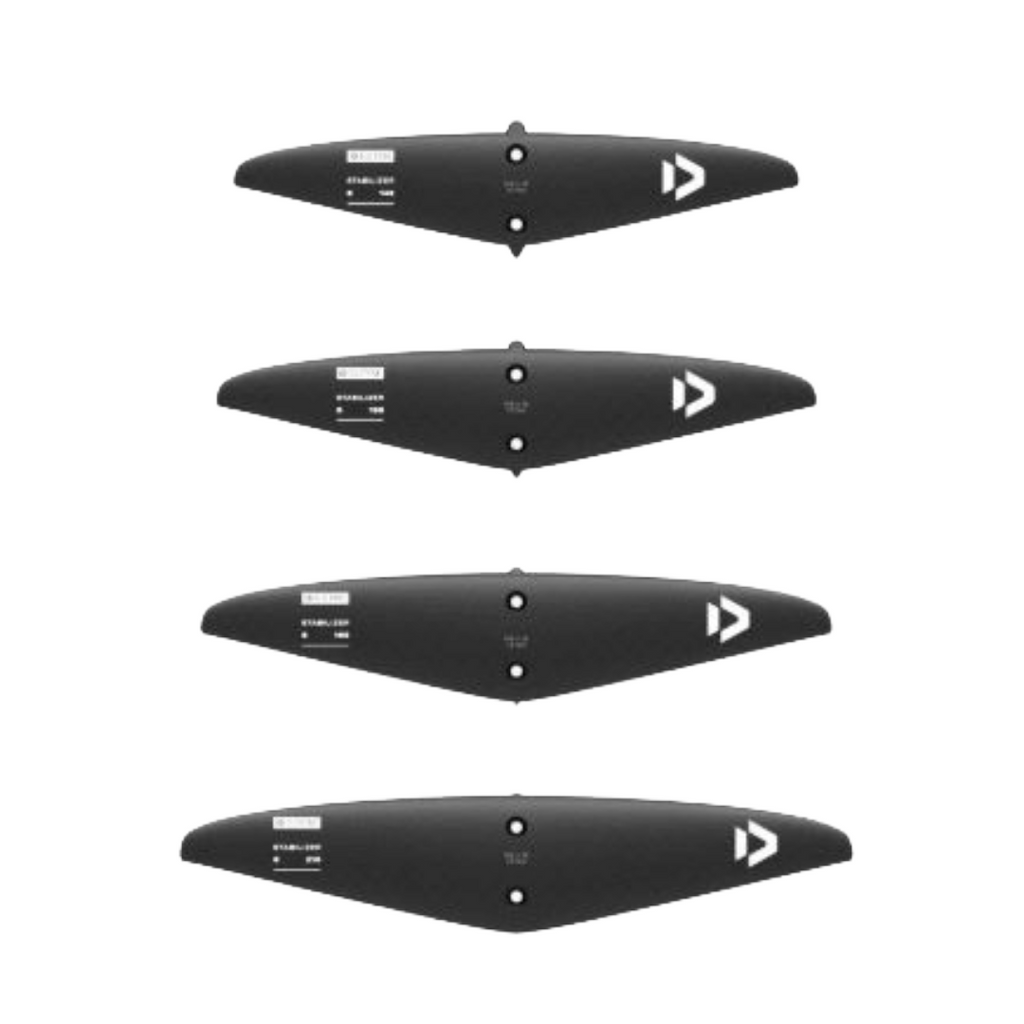

Back Wing Stabilizer S

Surf Style Stab

Along with the new Whizz SLS front wings we’ve developed a new range of stabilizers to best match the character of the Whizz.

The outline of the Stabilizer S, with very little sweep and a slight dihedral angle gives these back wings a really fun and loose feel. The profile used is completely different to our P or C stabs and really helps in making the whole setup much better at pumping while maintaining maximum playfulness.

Playful and loose

Playful and loose turning behavior

Loose turning

Slighly dihedral angle offers fun and loose turning

Great for Pumping

Great pumping ability with low stall speed

Innovative outline

Innovative outline with very little sweep enhances pumping efficiency

Special Profile

Special Profile for maximum projection when pumping and low stall speed

Surface (cm / in²)	145/22.5	165/25.6	185/28.7	210/32.6
Screw Info	2xM6x16	2xM6x16	2xM6x16	2xM6x16
Rec. Torque	10 NM	10 NM	10 NM	10 NM

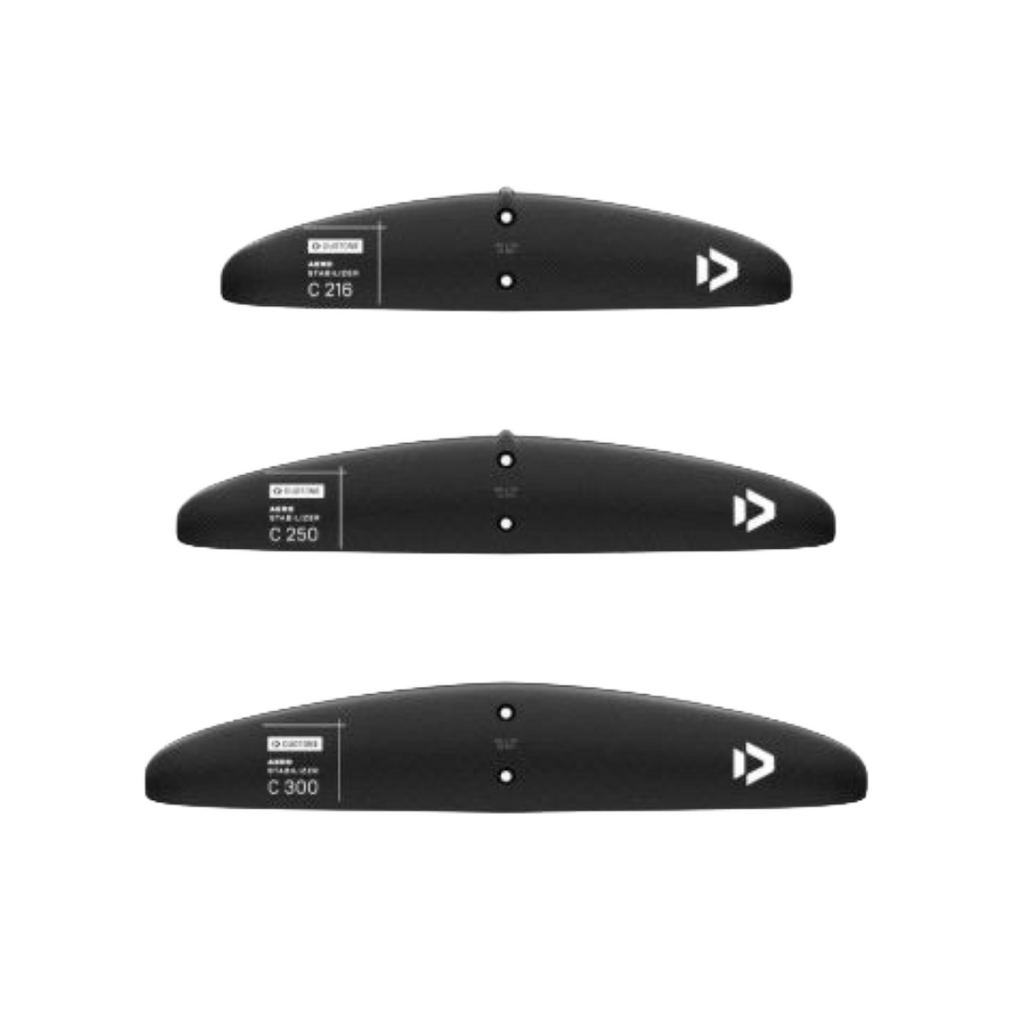

Back Wing Aero Stabilizer C

Control

Our range of Stabilizer C have been working flawlessly in combination with all our front wings for the last few years. They are what one could call a “traditional” approach, medium aspect ratio, flat in the center and going into a subtle winglet towards the wingtip.

The Stabilizer C range has been working flawlessly in combination with all the front wings for the last few years.

They are what one could call a “traditional” approach, medium aspect ratio, flat in the center and going into a subtle winglet towards the wingtip.

A well tested and proven design which works great with our Aero Free SLS and Aero Lift SLS front wings. The C-Series stands for control. They are all about keeping the rider on its trajectory and keeping the pitch in check.

Even though they are great at maintaining a stable flight, they are still loose enough to allow for smooth turns and return great feedback in the waves. Take full advantage of our brand new thin shims and tweak the angle of attack of your stabilizer by +/- 0.3 degrees increments, to suit your particular riding style or the conditions on a given day

216

User friendly and proven stabilizer design featuring subtle winglets. Best suited to our small Free SLS wings: 800 and 1000.

250

User friendly and proven stabilizer featuring subtle winglets. Best suited to our medium Free SLS wings: 1250, 1500 and 1750.

300

User friendly and proven stabilizer featuring subtle winglets. Best suited to our large 2000 Free SLS wing and 2400 Lift SLS.

Surface (cm / in²)	216/33	250/39	300/47
Span (cm / in)	36/14	42/16	45/18
Aspect Ratio	6	6.9	6.9
Screw Info	2xM6x20	2xM6x20	2xM6x20
Rec. Torque	10NM	10NM	10NM
